Same model may have multiple batches, images only for reference.

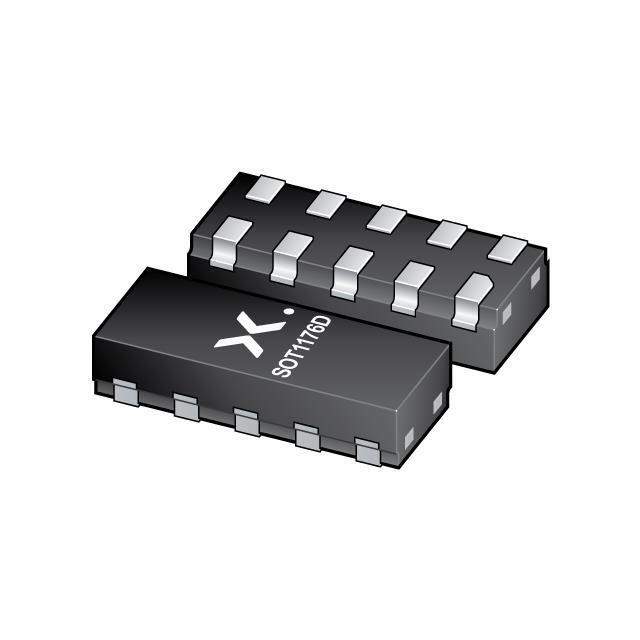

PESD4USB3U-TBSX Real Image
Same model may have multiple batches, images only for reference.

PESD4USB3U-TBSX

Part No PESD4USB3U-TBSX
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 3.5VC 10DFN / 3.5V (Typ) Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank DFN2510D-10
Datasheet
PESD4USB3U-TBSX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 3.5V (Typ)
Current - Peak Pulse (10/1000µs) 7A (8/20µs)
Power Line Protection No
Applications Automotive, HDMI, USB
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C
Mounting Surface Mount, Wettable Flank
Case / Package 10-WFDFN
Supplier Device Package DFN2510D-10
Base Product Number PESD4USB3
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1727-PESD4USB3U-TBSXDKR,934662556115,1727-PESD4USB3U-TBSXTR,1727-PESD4USB3U-TBSXCT
Standard Package 4,000
Win Source Part Number 1334956-PESD4USB3U-TBSX
Ultra Librarian 3D Model Ultra Librarian PESD4USB3U-TBSX CAD Model

Description

The PESD4USB3U-TBSX is a Zener type electronic component from Nexperia USA Inc. that is used in TVS-diode circuit protection applications.

  • Reverse Standoff Voltage: 3.3V (Max)
  • Breakdown Voltage: 6V
  • Clamping Voltage (Typ) @ Ipp: 3.5V
  • Capacitance @ 1MHz: 0.4pF
  • Temperature Range: -55°C to 150°C
  • Package Type: 10-WFDFN
