Same model may have multiple batches, images only for reference.

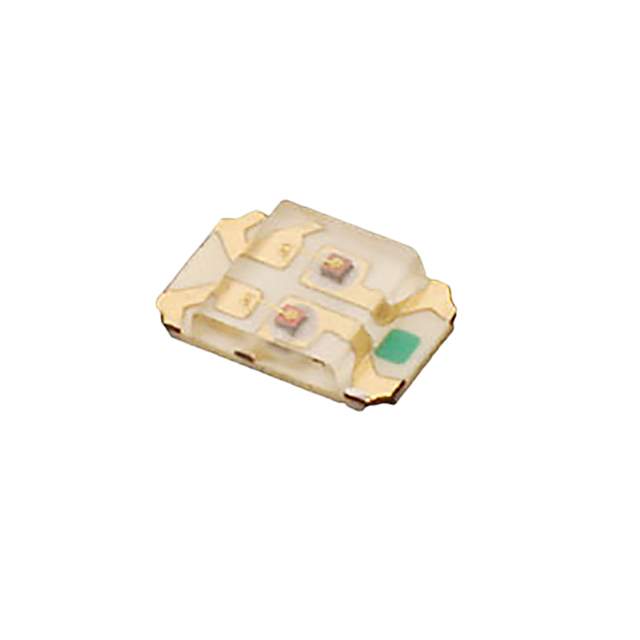

SML-LXT0805SISUGC Real Image
Same model may have multiple batches, images only for reference.

SML-LXT0805SISUGC

Part No SML-LXT0805SISUGC
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR SMD / Green, Red LED Indication - Discrete 2.1V Green, 1.95V Red 0805 (2012 Metric)
Datasheet
SML-LXT0805SISUGC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 50mcd Green, 250mcd Red
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 1.25mm
Voltage - Forward (Vf) (Typ) 2.1V Green, 1.95V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 574nm Green, 645nm Red
Package / Case 0805 (2012 Metric)
Dimension 1.25mm L x 2.00mm W
Height (Max) 0.40mm
Base Product Number SML-LXT0805
Other Names 67-2214-1,67-2214-2,67-2214-6
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241897-SML-LXT0805SISUGC
Ultra Librarian 3D Model Ultra Librarian SML-LXT0805SISUGC CAD Model

Description

The 1241897-SML-LXT0805SISUGC is an LED Indication - Discrete component from Lumex Opto/Components Inc.

  • Type: Surface Mounted LED
  • Color: Green and red
  • Viewing Angle: 120 degrees
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 50mcd for green and 250mcd for red
  • Forward Voltage: 2.1V for green and 1.95V for red
  • Wavelength Peak: 574nm for green and 645nm for red
  • Maximum Height: 0.40mm
  • Dimension: 1.25mm in length and 2.00mm in width
  • Package/Case: 0805 (2012 Metric)
  • Suitable for: Tape and reel packaging
  • Standard Package: 2,000 pieces
  • Other Names: 67-2214-1, 67-2214-2, and 67-2214-6
