Same model may have multiple batches, images only for reference.

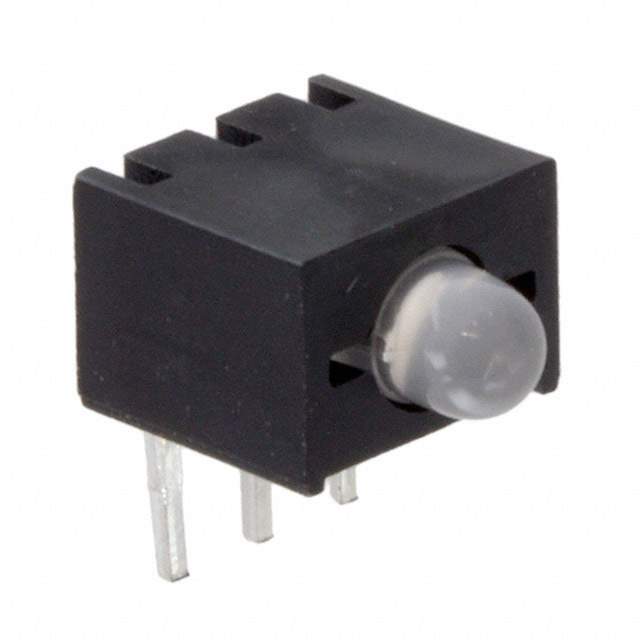

SSF-LXH109SISUGW Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH109SISUGW

Part No SSF-LXH109SISUGW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED T-3 RED, GRN WHT DIFF RA 3LD / LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Orange, 30mA Red Round with Domed Top 3mm, T-1
Datasheet
SSF-LXH109SISUGW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Series QuasarBrite
Package Bulk
Color Green, Red
Wavelength - Peak 574nm, 636nm
Configuration Single
Current 25mA Orange, 30mA Red
Millicandela Rating 130mcd Green, 350mcd Red
Viewing Angle 60°
Lens Type Diffused, White
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.2V Green, 2V Red
Base Product Number SSF-LXH109
Other Names 67-2181
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238063-SSF-LXH109SISUGW
Ultra Librarian 3D Model Ultra Librarian SSF-LXH109SISUGW CAD Model

Description

The SSF-LXH109SISUGW from Lumex Opto/Components Inc. is a high-quality LED circuit board indicator that is designed for use in a variety of applications.

  • Viewing Angle: 60 degrees
  • Millicandela Rating: 130mcd (green) and 350mcd (red)
