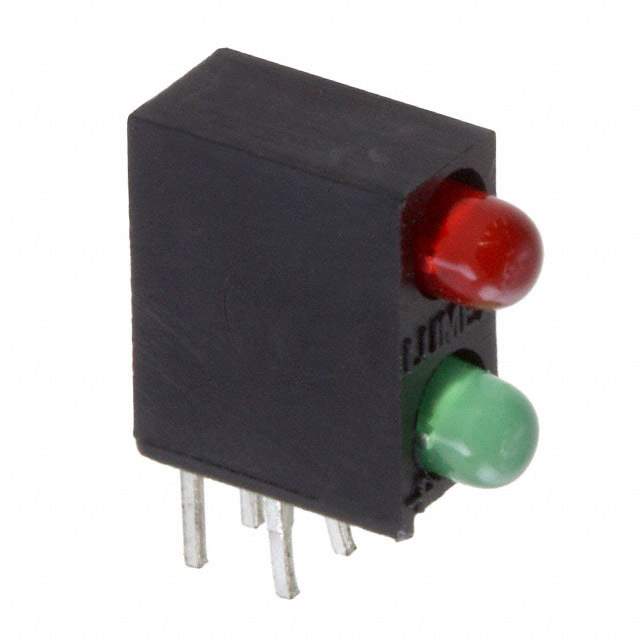

SSF-LXH240IGD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH240IGD

Part No SSF-LXH240IGD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description PCB DUAL TWR LED IND, RED/GREEN / LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, Tinted 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top 3mm, T-1
Datasheet
SSF-LXH240IGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green (x 1), Red (x 1)
Wavelength - Peak 565nm, 635nm
Configuration 2 High
Current 25mA Green, 30mA Red
Millicandela Rating 30mcd Green, 40mcd Red
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.2V Green, 2V Red
Base Product Number SSF-LXH240
Other Names 67-2201,Q629899,SSF-LXH240IGD,Q3444577
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238252-SSF-LXH240IGD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH240IGD CAD Model

Description

The SSF-LXH240IGD is a green and red LED circuit board indicator from Lumex Opto/Components Inc.

  • Configuration: 2 High
  • Viewing Angle: 60 degrees
  • Voltage Rating (Green): 2.2V
  • Voltage Rating (Red): 2V
  • Millicandela Rating (Green): 30mcd
  • Millicandela Rating (Red): 40mcd
  • Peak Wavelength (Green): 565nm
  • Peak Wavelength (Red): 635nm
  • Current (Green): 25mA
  • Current (Red): 30mA
  • Lens Type: Diffused and Tinted
  • Lens Style: Round with a Domed Top
  • Lens Size: 3mm, T-1
  • Packaging: Bulk
  • Standard Package: 500
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
  • Also known as: 67-2201, Q629899, SSF-LXH240IGD, and Q3444577
