Same model may have multiple batches, images only for reference.

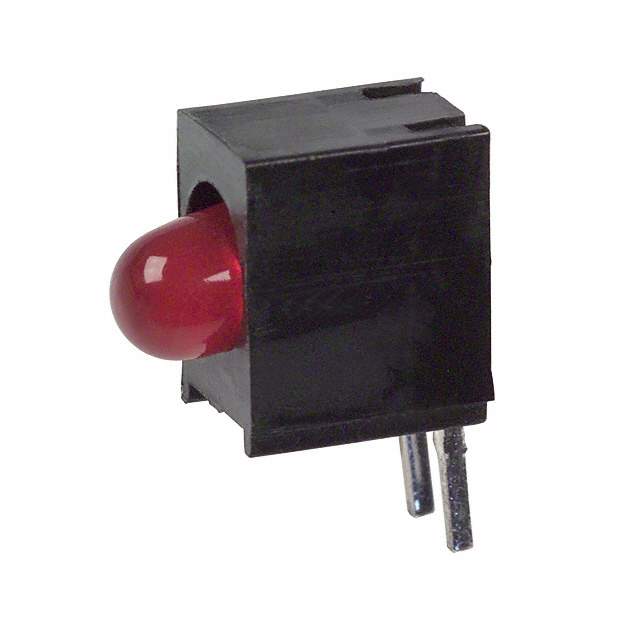

SSF-LXH303ID Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH303ID

Part No SSF-LXH303ID
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM FAULT-IND RED PC MOUNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH303ID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 20mA
Millicandela Rating 40mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH303
Other Names 67-1320,LU20421,SSFLXH303ID,67-1320R
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238169-SSF-LXH303ID
Ultra Librarian 3D Model Ultra Librarian SSF-LXH303ID CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH303ID is a red LED with a viewing angle of 60 degrees and a millicandela rating of 40mcd.

  • Manufacturer: Lumex Opto/Components Inc.
  • Color: Red
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 40mcd
  • Mounting Type: Through-hole, right-angle
  • Lens Type: Diffused, tinted
  • Lens Style: Round, domed top
  • Configuration: Single
  • Voltage Rating: 2.1V
  • Current: 20mA
  • Wavelength Peak: 635nm
  • Package Size: 3mm, T-1
