Same model may have multiple batches, images only for reference.

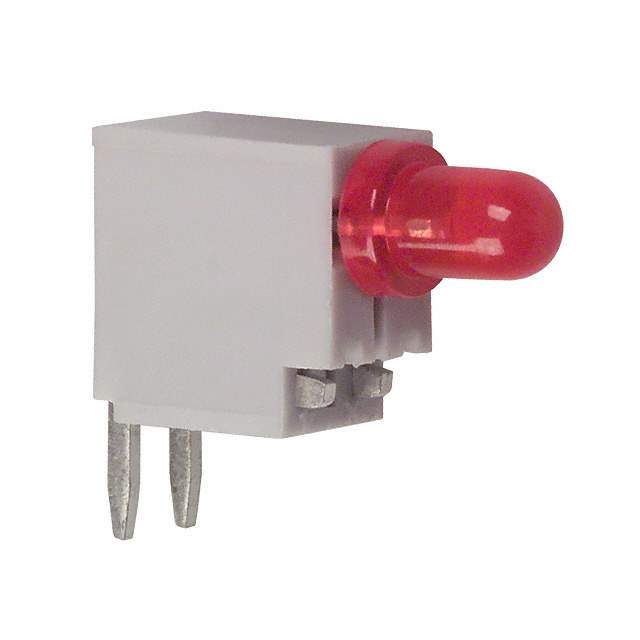

SSF-LXH4RASRD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH4RASRD

Part No SSF-LXH4RASRD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RELAMPABLE SUP RED PCMNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 1.7V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH4RASRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 660nm
Configuration Single
Current 20mA
Millicandela Rating 80mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 1.7V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH4
Other Names SSFLXH4RASRD,67-1306,67-1306R,LU2034B1
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238153-SSF-LXH4RASRD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH4RASRD CAD Model

Description

The SSF-LXH4RASRD from Lumex Opto/Components Inc. is a single configuration LED circuit board indicator that comes in a bulk package.

  • Voltage Rating: 1.7V
  • Millicandela Rating: 80mcd
  • Wavelength: Peak 660nm
  • Viewing Angle: 60 degrees
  • Lens Type: Diffused, tinted
  • Lens Style: Round with a domed top
  • Lens Size: 3mm, T-1
  • SSF-LXH4RASRD: A reliable and durable LED that can be used for various purposes
