Same model may have multiple batches, images only for reference.

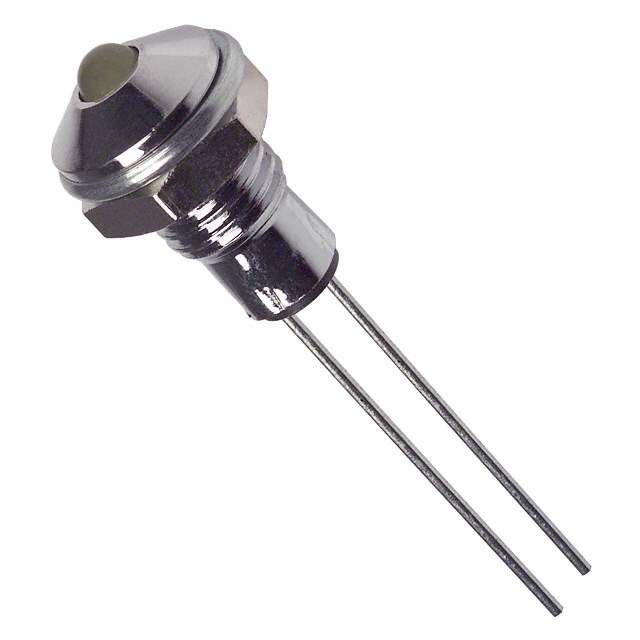

SSI-LXR3612YD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXR3612YD

Part No SSI-LXR3612YD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 3MM YELLOW DIFF PANEL MOUNT / LED Panel Indicator Yellow Diffused 60° 2.1V 30mA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Yellow
Lens Color Yellow
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 2.1V
Current 30mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.24" (6.10mm)
Lens Size 3mm, T-1
Lens Style Round with Domed Top
Millicandela Rating 30mcd
Wavelength - Peak 585nm
Viewing Angle 60°
Base Product Number SSI-LXR3612
Other Names LU10017,SSILXR3612YD,67-1153R,67-1153
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237796-SSI-LXR3612YD
Ultra Librarian 3D Model Ultra Librarian SSI-LXR3612YD CAD Model

Description

The Lumex Opto/Components Inc. SSI-LXR3612YD is a yellow LED panel indicator designed for use in optoelectronics.

  • Voltage: 2.1V
  • Current: 30mA
  • Viewing Angle: 60°
  • Millicandela Rating: 30mcd
  • Operating Temperature Range: -40°C to 85°C
  • Panel Cutout Dimension: 0.24" (6.10mm)
  • Package: Bulk
  • Lens Style: Round with a Domed Top
  • MSL Level: 1 (Unlimited)
  • REACH: REACH unaffected
