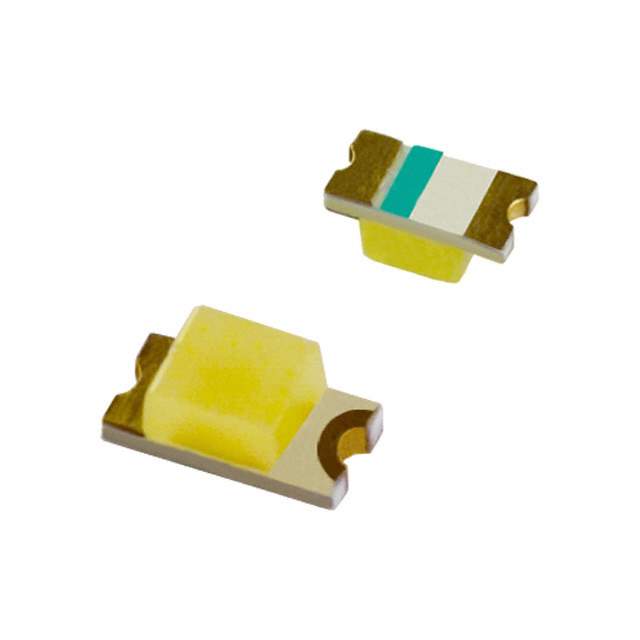

SML-LX0603UWD-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0603UWD-TR

Part No SML-LX0603UWD-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED WHITE DIFFUSED 0603 SMD
Datasheet
SML-LX0603UWD-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumex Opto/Components Inc.
Packaging Reel - TR
Status Active
Color White
Lens Color Yellow
Lens Transparency Diffused
Millicandela Rating 160mcd
Lens Style/Size Rectangle with Flat Top, 1.00mm x 0.80mm
Forward Voltage 3.5V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Height (Max) 0.80mm
Win Source Part Number 122395-SML-LX0603UWD-TR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SML-LX0603UWD-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LX0603UWD-TR is a white surface mount LED with a viewing angle of 140 degrees and a millicandela rating of 160mcd.

  • Viewing Angle: 140 degrees
  • Millicandela Rating: 160mcd
  • Forward Voltage: 3.5V
  • Current Test: 20mA
  • Lens: Rectangular with a Flat Top measuring 1.00mm x 0.80mm
  • Lens Color: Diffused Yellow
  • Application: Optoelectronic
