Same model may have multiple batches, images only for reference.

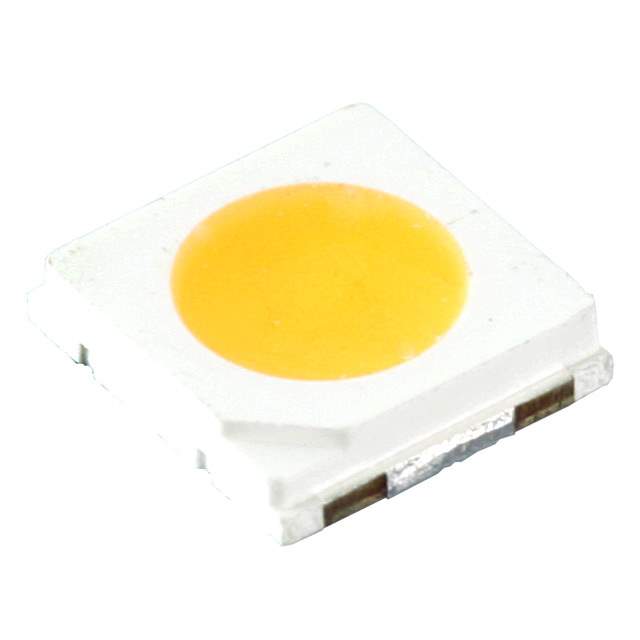

MXA7-PW57-H001 Real Image
Same model may have multiple batches, images only for reference.

MXA7-PW57-H001

Part No MXA7-PW57-H001
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 5700K 2SMD / LED Lighting series White, Cool 5700K 2.9V 100mA 115° 1414 (3535 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON 3535L
Package Tape & Reel
Color White, Cool
CCT (K) 5700K
Flux @ 25°C, Current - Test 54lm (Typ)
Current - Test 100mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 186 lm/W
CRI (Color Rendering Index) 70
Current - Max 300mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 18°C/W
Base Product Number MXA7-PW57
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1507-2,1416-1507-1,1416-1507-6
Standard Package 5,000
Win Source Part Number 972071-MXA7-PW57-H001
Ultra Librarian 3D Model Ultra Librarian MXA7-PW57-H001 CAD Model

Description

The 972071-MXA7-PW57-H001 is a LUXEON 3535L series white cool LED lighting product.

  • Package: Tape & Reel
  • Height - Seated (Max): 0.031" (0.80mm)
  • Current - Max: 300mA
  • Viewing Angle: 115°
  • Voltage - Forward (Vf) (Typ): 2.9V
  • Current - Test: 100mA
  • CCT (K): 5700K
  • Flux @ 25°C, Current - Test: 54lm (Typ)
  • Lumens/Watt @ Current - Test: 186 lm/W
  • CRI (Color Rendering Index): 70
  • Thermal Resistance of Package: 18°C/W
