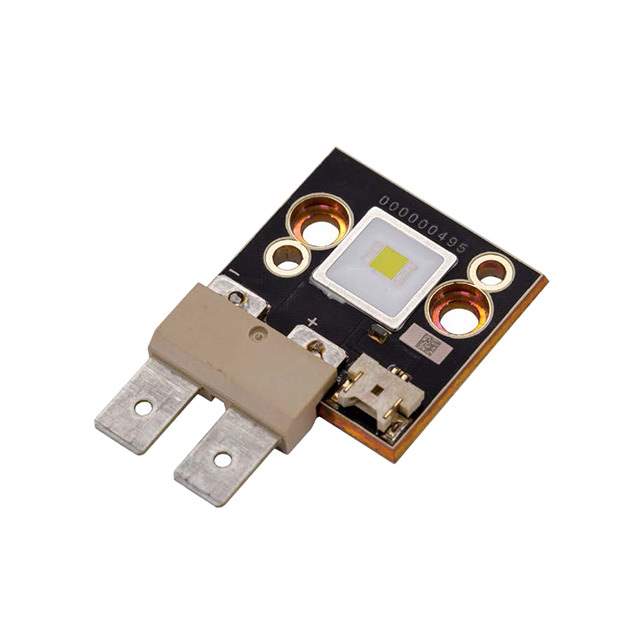

CFT-90-WSS-X11-UA900 Real Image
Same model may have multiple batches, images only for reference.

CFT-90-WSS-X11-UA900

Part No CFT-90-WSS-X11-UA900
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD CFT90W CL WH RECT 7800K / LED Lighting COBs Engines Modules LED Module CFT-90-W White, Cool Rectangle
Datasheet
CFT-90-WSS-X11-UA900 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr Luminus Devices Inc.
Series CFT-90-W
Package Tray
Type LED Module
Color White, Cool
CCT (K) 7800K
Configuration Rectangle
Luminous Flux @ Current/Temperature 3818lm (3680lm ~ 3955lm)
Current - Test 22.5A
Temperature - Test 90°C
Voltage - Forward (Vf) (Typ) 3.5V
Lumens/Watt @ Current - Test 48 lm/W
Current - Max 27A
CRI (Color Rendering Index) 70 (Typ)
Viewing Angle 120°
Features With Connector
Size / Dimension 28.00mm L x 26.75mm W
Height 3.93mm
Light Emitting Surface (LES) 3.00mm L x 3.00mm W
Lens Type Flat
Base Product Number CFT-90
Standard Package 50
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1350425-CFT-90-WSS-X11-UA900
Ultra Librarian 3D Model Ultra Librarian CFT-90-WSS-X11-UA900 CAD Model

Description

The Luminus Devices CFT-90-WSS-X11-UA900 LED module is a high-power device that produces a cool white light with a CCT of 7800K.

  • Light Color: Cool White
  • CCT: 7800K
  • Forward Voltage (Vf): 3.5V
  • Current Rating (Max): 27A
  • Viewing Angle: 120 degrees
  • Luminous Flux (Typ): 3818lm @ 22.5A
  • Package Configuration: Rectangle
  • LES: 3.00mm L x 3.00mm W
  • Package: Tray
  • Applications: LED lighting for streetlights and high-bay lighting
  • Manufacturer: Luminus Devices
