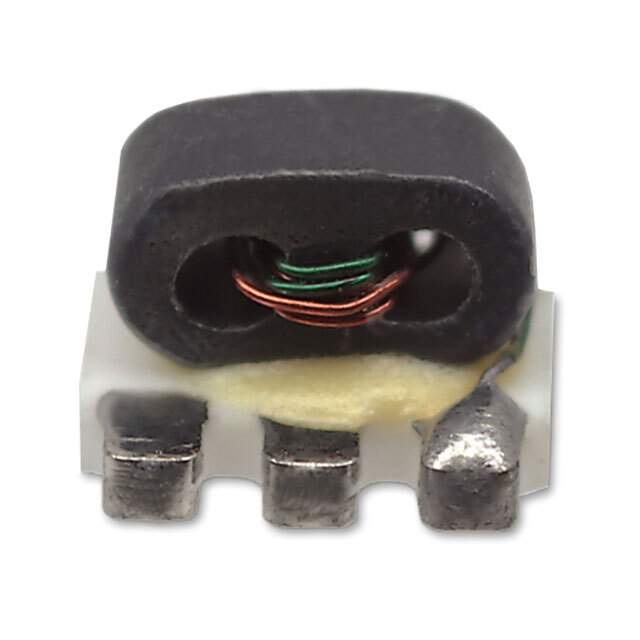

The ETK4-2TTR is a surface mount balun from M/A-Com Technology Solutions. It is designed for impedance matching and signal balancing across a range of radio frequency applications. Baluns are critical components for interfacing between balanced and unbalanced circuits, ensuring optimal signal transfer and minimizing signal reflections.

Applications:

• Wireless Communication Systems: Used in RF front-ends of wireless devices to connect balanced amplifiers or mixers to unbalanced antennas.
• Cable Television (CATV) Systems: Implemented in set-top boxes and cable modems for impedance matching between the cable and the internal circuitry.
• Satellite Communication Systems: Employed in low-noise block downconverters (LNBs) to convert the balanced signal from the antenna to an unbalanced signal.
• Differential Amplifiers: Used to convert single-ended signals to differential signals for improved noise immunity.
• Telecommunications Equipment: Integrated into various telecommunication devices to ensure proper signal transmission and reception.

Features:

• Surface Mount Technology (SMT): Enables automated assembly, reducing manufacturing costs and improving reliability.
• Compact Size: Minimizes board space requirements, making it suitable for compact devices.
• Wideband Performance: Operates over a broad frequency range, accommodating various communication standards.
• Low Insertion Loss: Minimizes signal attenuation, maximizing signal strength and efficiency.
• Excellent Return Loss: Provides good impedance matching, reducing signal reflections and improving signal quality.
• RoHS Compliant: Meets environmental standards, restricting the use of hazardous substances.

Benefits:

• Improved Signal Quality: Reduces signal imbalances and reflections, resulting in clearer and more reliable communication.
• Increased System Efficiency: Minimizes signal loss, optimizing power consumption and extending battery life in portable devices.
• Simplified Circuit Design: Facilitates impedance matching, simplifying the design process and reducing component count.
• Reduced Manufacturing Costs: SMT design enables automated assembly, lowering production expenses.
• Enhanced System Reliability: Robust construction ensures stable performance over a wide range of operating conditions.

Technical Specifications: While specific technical specifications (e.g., frequency range, impedance ratio, insertion loss) may vary depending on the exact model, typical characteristics include a frequency range spanning several hundred MHz to a few GHz, an impedance ratio of 50 to 75 ohms, and low insertion loss. Consult the datasheet for precise values relevant to a specific application.
