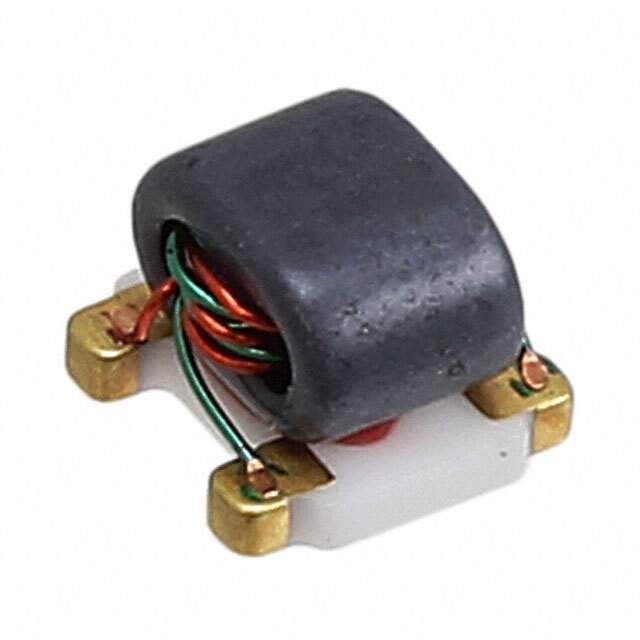

MABACT0059 Real Image
Same model may have multiple batches, images only for reference.

MABACT0059

Part No MABACT0059
Manufacturer M/A-Com Technology Solutions
Catalog Balun
Description 1:1 Transmission Line Transformer 4.5 - 3000MHz | BALUN 4.5MHZ-3GHZ 1:1 6SMD FLAT
Datasheet
MABACT0059 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Frequency Range 4.5MHz ~ 3GHz
Insertion Loss (Maximum) 8.4dB
Return Loss (Minimum) 15dB
Manufacturer Package 6-SMD (5 Leads), Flat Lead
Mounting Style SMT
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1211614-MABACT0059
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MABACT0059 CAD Model

Description

The MABACT0059 is a reel-packaged electronic component manufactured by M/A-Com Technology Solutions.

  • Frequency Range: 4.5MHz to 3GHz
  • Maximum Insertion Loss: 8.4dB
  • Minimum Return Loss: 15dB
  • Category: RF/IF and RFID
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
