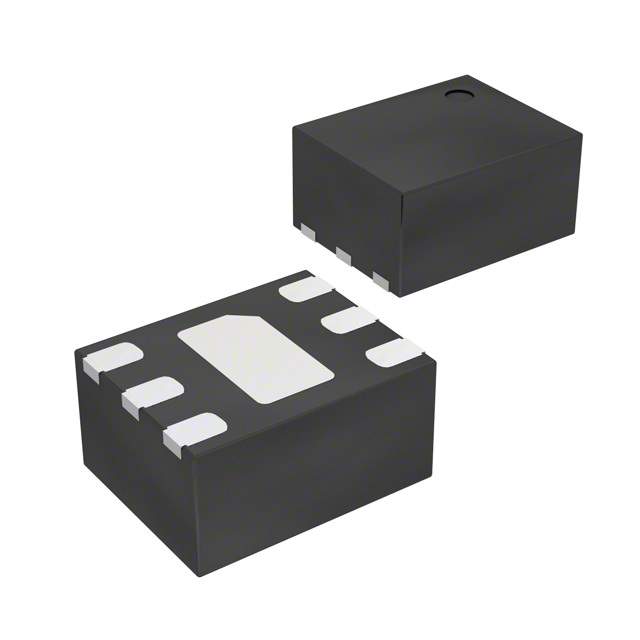

MACP-010563-TR1000 Real Image
Same model may have multiple batches, images only for reference.

MACP-010563-TR1000

Part No MACP-010563-TR1000
Manufacturer M/A-Com Technology Solutions
Catalog RF Directional Coupler
Description Directional Power Detector / COUPLER PWR DETECTOR 10-30GHZ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel package
Coupler Type Standard
Frequency 10GHz ~ 30GHz
Insertion Loss 1dB
Return Loss -17.5dB
Package 6-WFDFN Exposed Pad
Manufacturer Package 6-TDFN (1.5x1.2)
Win Source Part Number 785185-MACP-010563-TR1000
Popularity Medium
Supply and Demand Status Limited
Family Name MACP-010563
Introduction Date September 25, 2012
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MACP-010563-TR1000 CAD Model

Description

The M/A-Com Technology Solutions coupler is a coupler manufactured by M/A-Com Technology Solutions.

  • Win Source Part Number: 785185-MACP-010563-TR1000
  • Applications: RF/IF and RFID
  • Popularity: Medium
  • Package: 6-WFDFN exposed pad
  • Frequency Range: 10GHz to 30GHz
  • Insertion Loss: 1dB
  • Return Loss: -17.5dB
