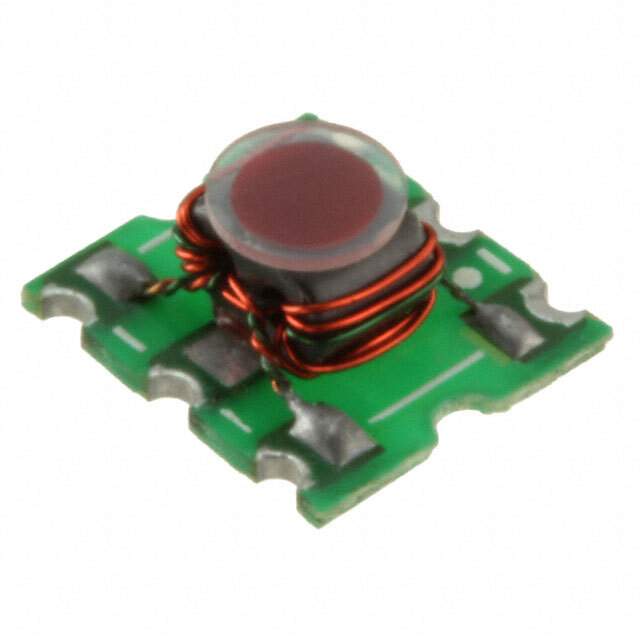

The MACP-009011-C80370 is a surface mountable power splitter/combiner from M/A-Com Technology Solutions (now MACOM). It is designed to equally divide an input signal into two output signals with minimal loss and good isolation between the output ports. It operates over a broad frequency range, making it suitable for various wireless communication and signal processing applications.

Applications:

• Wireless Communications
• Radar Systems
• Satellite Communications
• Test and Measurement Equipment
• Signal Distribution Networks

Features:

• Wide Frequency Range: DC to 2.5 GHz
• Low Insertion Loss
• High Isolation
• Excellent Amplitude and Phase Balance
• Surface Mount Package

Benefits:

• Equal signal division for various applications.
• Minimal signal loss ensures efficient power transmission.
• High isolation prevents signal interference between output ports.
• Excellent amplitude and phase balance for accurate signal splitting.
• Easy to integrate into PCB designs due to surface mount package.

Additional Details:

The MACP-009011-C80370 is fabricated using a high-performance microstrip technology to achieve excellent electrical performance and reliability. The low insertion loss minimizes the power wasted during signal splitting. The high isolation between the output ports prevents unwanted signal leakage and interference. The excellent amplitude and phase balance ensures that the output signals are nearly identical, which is critical for applications requiring precise signal splitting. The surface mount package allows for easy and cost-effective assembly onto printed circuit boards. The MACP-009011-C80370 is a versatile power splitter/combiner suitable for a wide range of applications requiring equal signal division with minimal loss and high isolation.
