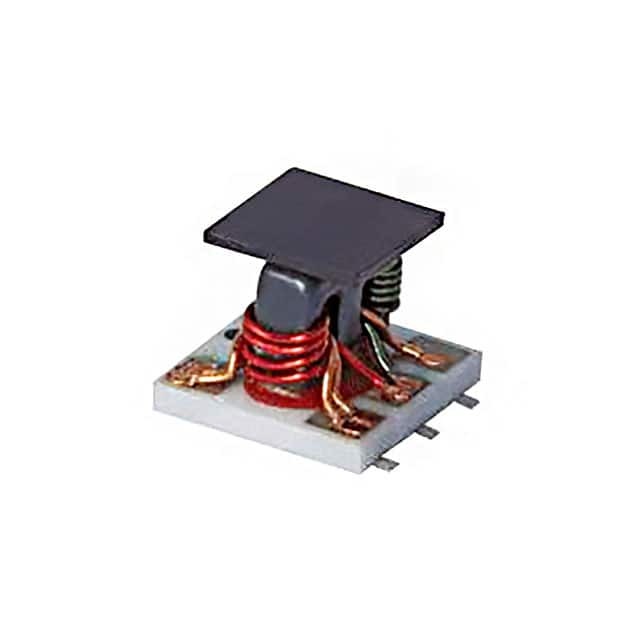

DBTC-12-4LX+
Same model may have multiple batches, images only for reference.

DBTC-12-4LX+

Part No DBTC-12-4LX+
Manufacturer Mini-Circuits
Catalog RF Directional Coupler
Description RF DIR COUPLER 5MHZ-1GHZ 5SMD
Datasheet
DBTC-12-4LX+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 25 Weeks
Features RF Directional Coupler Cellular 5MHz ~ 1GHz 12.2 ± 0.5dB 1W 5-SMD Module
Manufacturer Mini-Circuits
Package Reel - TR
Package 5-SMD Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916799-DBTC-12-4LX+
Ultra Librarian 3D Model Ultra Librarian DBTC-12-4LX+ CAD Model

Description

The DBTC-12-4LX+ is an RF Directional Coupler Cellular manufactured by Mini-Circuits.

  • Category: RF/IF and RFID
  • Package: Reel - TR
  • Supply and Demand Status: Balanced
  • Quantity per Package: 2000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 25 weeks
  • HTSUS: 8548.90.0100
