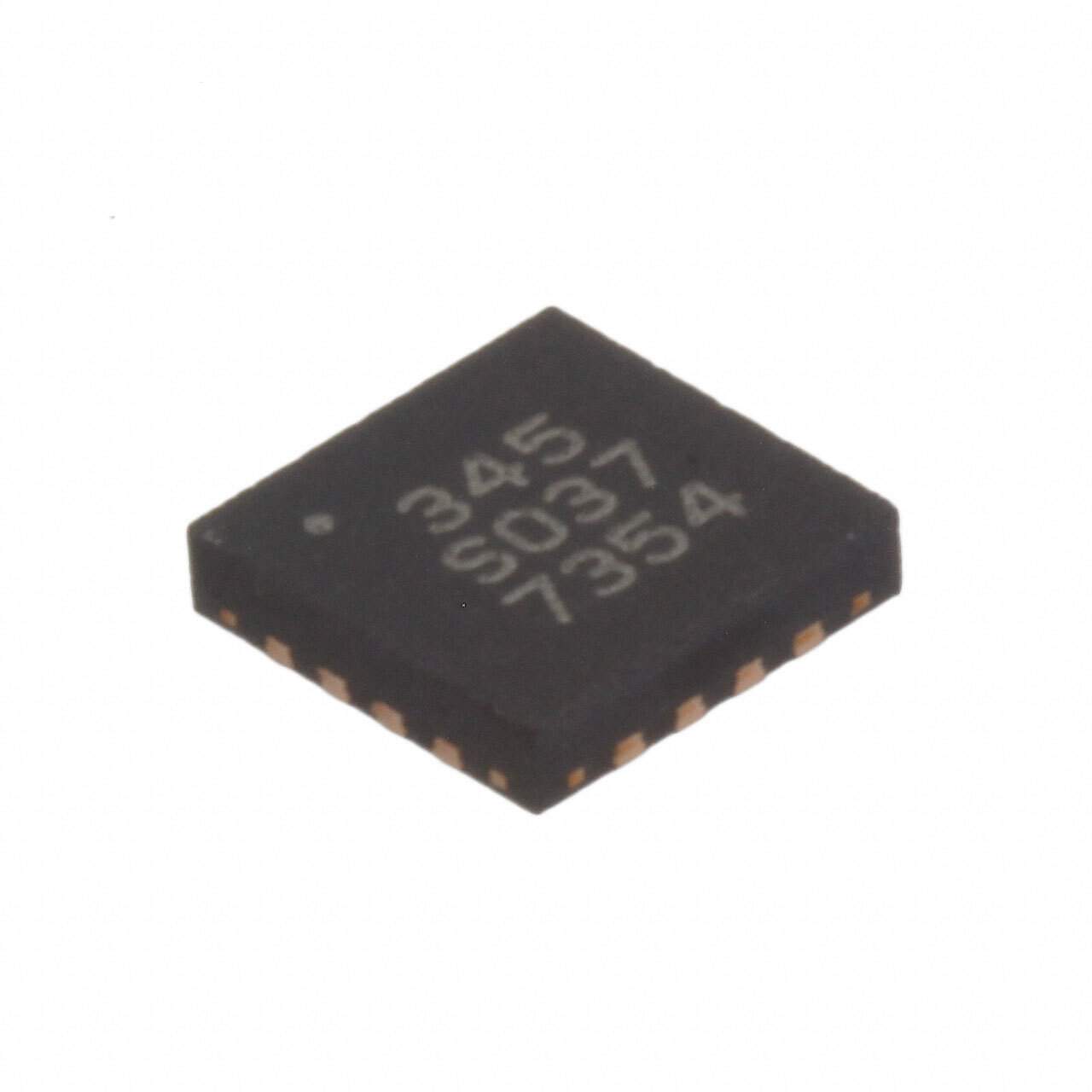

MASW-000834-13560T Real Image
Same model may have multiple batches, images only for reference.

MASW-000834-13560T

Part No MASW-000834-13560T
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description RF Switch SPDT 50MHz to 6GHz 11.8dB 16-Pin QFN EP T/R / IC RF SWITCH SPDT 16-PQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel - TR
Status Active
Frequency - Lower 50MHz
Frequency - Upper 6GHz
Isolation @ Frequency 36dB @ 3.5GHz (typ)
Insertion Loss @ Frequency 0.38dB @ 3.5GHz
IIP3 65dBm (typ)
Topology Reflective
Circuit SPDT
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 5V
RF Type WiFi, WiMAX
Case / Package 16-PQFN (4x4)
Win Source Part Number 1065687-MASW-000834-13560T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MASW-000834-13560T
Introduction Date May 20, 2009
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MASW-000834-13560T CAD Model

Description

The MASW-000834-13560T is a high popularity RF/IF and RFID electronic component manufactured by M/A-Com Technology Solutions.

  • Used in: various electronic circuits
  • Type: reflective SPDT circuit
  • Impedance: 50 Ohm
  • Frequency Range: 50MHz to 6GHz
  • Isolation @ Frequency: 36dB @ 3.5GHz (typ)
  • Insertion Loss @ Frequency: 0.38dB @ 3.5GHz
  • IIP3: 65dBm (typ)
  • RF Type: WiFi, WiMAX
  • Supply Voltage: 5V
  • Supply and Demand Status: balance
