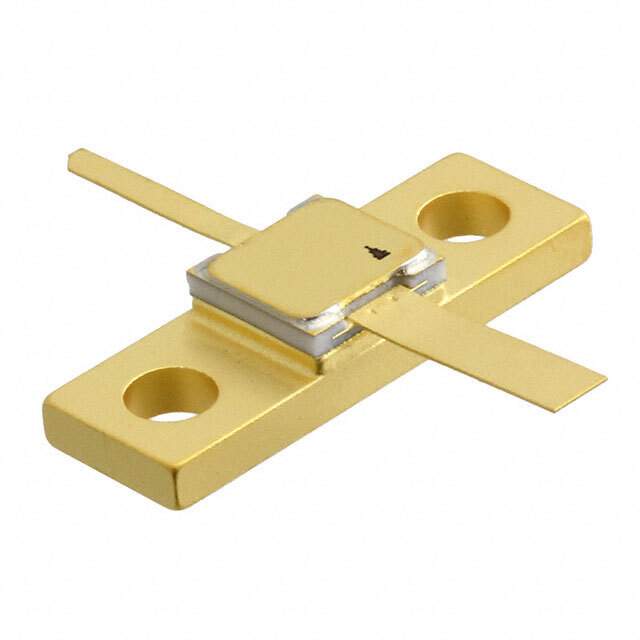

MRF10005 Real Image
Same model may have multiple batches, images only for reference.

MRF10005

Part No MRF10005
Manufacturer M/A-Com Technology Solutions
Catalog RF Transistors (BJT)
Description TRANS 5W 960MHZ-1215MHZ / RF Transistor NPN 55V 1.25mA 25W Chassis Mount 336E-02, Style 1
Datasheet
MRF10005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - RF
Manufacturer MACOM Technology Solutions
Packaging Tray
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 55V
Gain 8.5dB ~ 10.3dB
Power - Max 25W
DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 500mA, 5V
Current - Collector (Ic) (Max) 1.25mA
Temperature Range - Operating 200°C (TJ)
Mounting Chassis Mount
Case / Package 336E-02
Supplier Device Package 336E-02, Style 1
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 1465-1135
Standard Package 20
Win Source Part Number 1324227-MRF10005
Ultra Librarian 3D Model Ultra Librarian MRF10005 CAD Model

Description

The MRF10005 electronic component is a bipolar transistor that operates at a maximum power of 25W.

  • Voltage Collector Emitter Breakdown: 55V
  • Current Collector: 1.25mA (max)
  • Transistor Type: NPN
  • Gain: 8.5dB ~ 10.3dB
  • DC Current Gain (hFE): 20 @ 500mA, 5V
  • Supplier Device Package: 336E-02
  • Temperature Range: 200°C (TJ)
