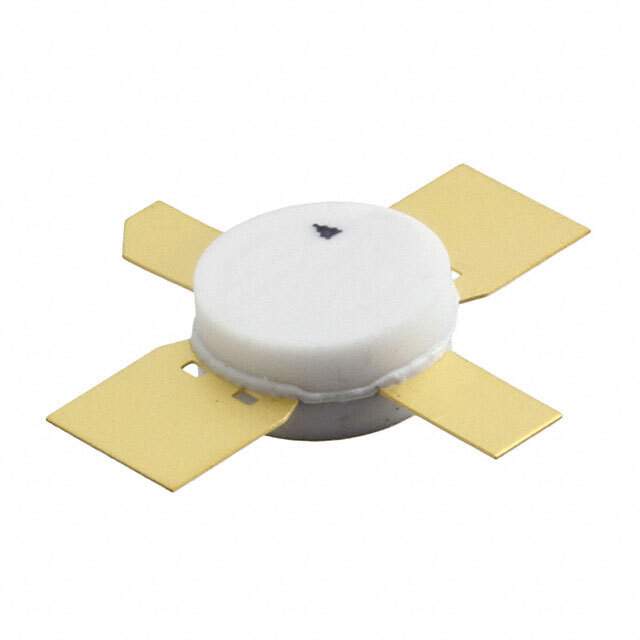

Same model may have multiple batches, images only for reference.

MRF1000MB

Name: MRF1000MB
Brand: M/A-Com Technology Solutions
SKU: 1324013
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	MRF1000MB
Manufacturer	M/A-Com Technology Solutions
Catalog	RF Transistors (BJT)
Description	RF TRANS NPN 20V 332A-03 / RF Transistor NPN 20V 200mA 0.7W Chassis Mount 332A-03, Style 2
Datasheet	MRF1000MB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - RF
Manufacturer	MACOM Technology Solutions
Packaging	Tray
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	20V
Gain	10.7dB ~ 12dB
Power - Max	0.7W
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 100mA, 5V
Current - Collector (Ic) (Max)	200mA
Mounting	Chassis Mount
Case / Package	332A-02
Supplier Device Package	332A-03, Style 2
Base Product Number	MRF1000
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	1465-1136
Standard Package	10
Win Source Part Number	1324013-MRF1000MB
Ultra Librarian 3D Model	Ultra Librarian MRF1000MB CAD Model

Alternative Products

Description

The MRF1000MB is an NPN bipolar transistor from MACOM Technology Solutions.

Package: 332A-02
Maximum Power Rating: 0.7W
Maximum Collector-Emitter Voltage: 20V
Maximum Collector Current: 200mA
DC Current Gain: 10 @ 100mA and 5V
Gain: 10.7dB to 12dB
