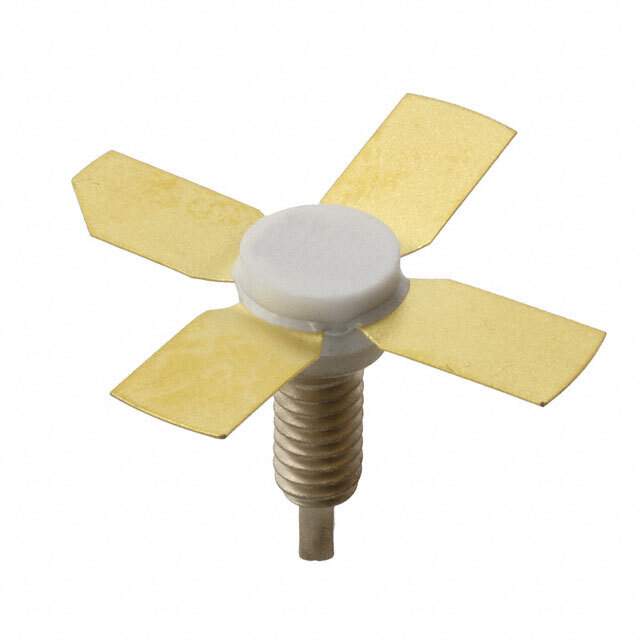

MRF323 Real Image
Same model may have multiple batches, images only for reference.

MRF323

Part No MRF323
Manufacturer M/A-Com Technology Solutions
Catalog RF Transistors (BJT)
Description TRANS RF NPN 33V 1.1A 244-04 / RF Transistor NPN 33V 2.2A 20W Chassis Mount 244-04, STYLE 1
Datasheet
MRF323 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - RF
Mfr MACOM Technology Solutions
Package Tray
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 33V
Gain 11dB
Power - Max 20W
DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 1A, 5V
Current - Collector (Ic) (Max) 2.2A
Mounting Type Chassis Mount
Package / Case 244-04
Supplier Device Package 244-04, STYLE 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Names 1465-1180
Standard Package 10
Win Source Part Number 1028374-MRF323
Ultra Librarian 3D Model Ultra Librarian MRF323 CAD Model

Description

The MRF323 is a high-performance NPN bipolar transistor designed for use in RF power amplifier applications from MACOM Technology Solutions.

  • Transistor Type: NPN
  • Maximum Power: 20W
  • Voltage Breakdown: 33V
  • Maximum Current Collector (Ic): 2.2A
  • DC Current Gain (hFE): 20 @ 1A, 5V
  • Gain: 11dB
  • Package: Tray
  • Standard Package: 10
  • Mounting Type: Chassis mount
  • Package/Case: 244-04
  • Supplier Device Package: 244-04, STYLE 1
