The MX25L8006EM1I is an 8-Mbit Serial NOR Flash memory device manufactured by Macronix. It features a standard Serial Peripheral Interface (SPI) for easy integration into a wide range of embedded systems.

Applications

• Embedded systems firmware storage
• Data storage for microcontrollers
• Boot code storage
• Configuration data storage
• Voice and audio storage
• Text and data storage

Features

• Memory Size: 8 Mbit (1MB)
• Interface: Serial Peripheral Interface (SPI)
• Clock Speed: Up to 86 MHz
• Supply Voltage: 2.7V to 3.6V
• Page Program: 256 bytes per page
• Sector Erase: 4KB sectors
• Block Erase: 32KB and 64KB blocks
• Write Protection: Hardware and software write protection
• Operating Temperature: -40°C to +85°C

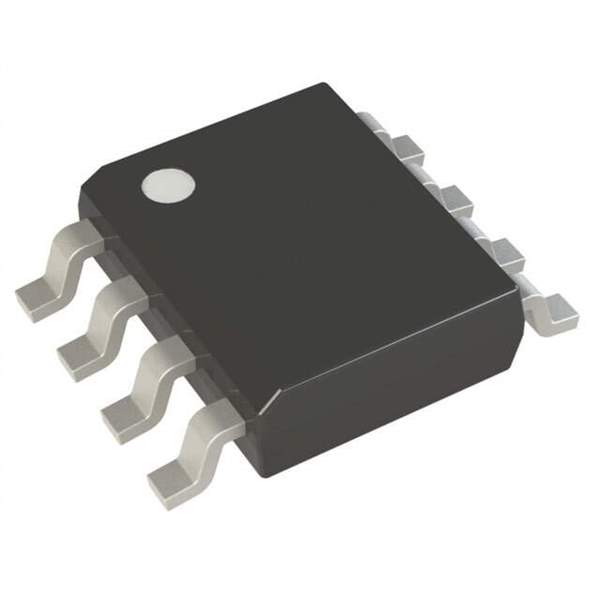

• Package: SOIC-8

Benefits

• Non-Volatile Storage: Retains data even when power is removed.
• Easy Integration: Standard SPI interface simplifies connection to microcontrollers and other devices.
• High Performance: Fast clock speed enables quick read and write operations.
• Flexible Erase Options: Sector and block erase options allow for efficient memory management.
• Data Protection: Hardware and software write protection prevent accidental data corruption.
• Wide Operating Temperature Range: Suitable for use in a variety of environments.
• Compact Size: Small SOIC-8 package saves board space.

Additional Details

The MX25L8006EM1I supports SPI modes 0 and 3. It also features a deep power-down mode to minimize power consumption when not in use. The device is programmed using standard SPI commands. It is commonly used in applications where reliable and non-volatile storage is required. Consult the datasheet for detailed timing diagrams, command sets, and application notes.
