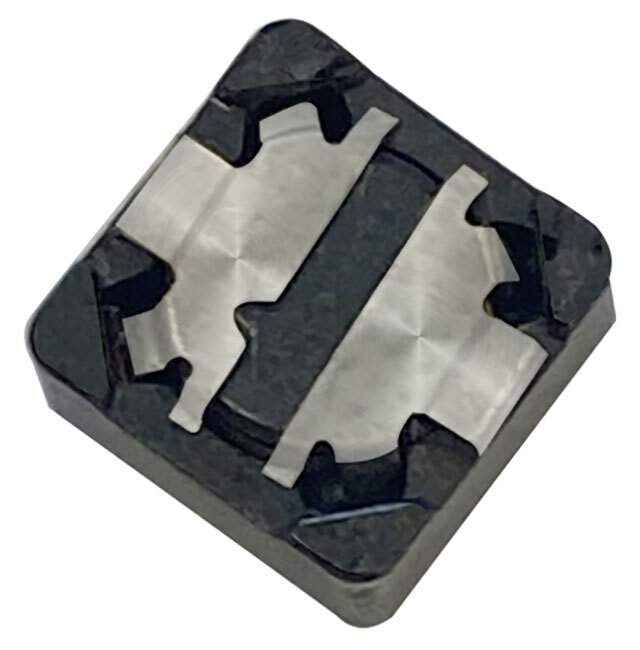

Same model may have multiple batches, images only for reference.

MSCDRI-74-100M-RU

Get a Quote

Part No	MSCDRI-74-100M-RU
Manufacturer	Mag Layers
Catalog	Fixed Inductors
Description	FIXED IND 10UH 1.84A 49MOHM
Datasheet	MSCDRI-74-100M-RU Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Mag Layers
Series	MSCDRI-74
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	1.84 A
Shielding	Shielded
DC Resistance (DCR)	49mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max)	0.181" (4.60mm)
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH info available upon request
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	928163-MSCDRI-74-100M-RU
Ultra Librarian 3D Model	Ultra Librarian MSCDRI-74-100M-RU CAD Model

Alternative Products

Description

The MSCDRI-74-100M-RU is a fixed inductor with a drum core and wirewound construction.

Type: Fixed Inductor
Core: Drum Core
Construction: Wirewound
Size: 0.287" L x 0.287" W (7.30mm x 7.30mm)
Mounting: Surface Mount
Shielding: Shielded
Inductance: 10µH
Current Rating: 1.84A
DC Resistance: 49mOhm
Temperature Range: -40°C to 125°C
Product Status: Active
Manufacturer: Mag Layers
