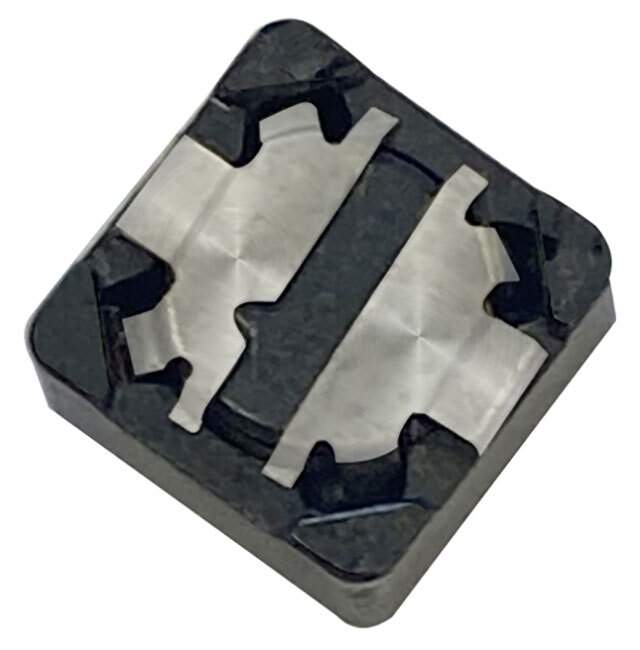

Same model may have multiple batches, images only for reference.

MSCDRI-74-101M-RU

Get a Quote

Part No	MSCDRI-74-101M-RU
Manufacturer	Mag Layers
Catalog	Fixed Inductors
Description	FIXED IND 100UH 0.60A 0.61 OHM / 100 µH Shielded Drum Core, Wirewound Inductor 600 mA 610mOhm Max Nonstandard
Datasheet	MSCDRI-74-101M-RU Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Mag Layers
Series	MSCDRI-74
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	600 mA
Shielding	Shielded
DC Resistance (DCR)	610mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max)	0.181" (4.60mm)
MSL Level	1 (Unlimited)
REACH Status	REACH info available upon request
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	2669-MSCDRI-74-101M-RUTR
Standard Package	25
Win Source Part Number	1008040-MSCDRI-74-101M-RU
Ultra Librarian 3D Model	Ultra Librarian MSCDRI-74-101M-RU CAD Model

Alternative Products

Description

The Mag Layers MSCDRI-74 series fixed inductor, part number 1008040-MSCDRI-74-101M-RU, is a surface mount device with a package of tape and reel.

Series: MSCDRI-74
Mounting Type: Surface Mount
Package: Tape and Reel
Inductance: 100μH
DC Resistance: 610mOhm max
Shielded: Yes
Operating Temperature: -40°C to 125°C
MSL Level: 1 (unlimited)
REACH: Available upon request
Current Rating: 600mA
Inductance Frequency Test: 100kHz
