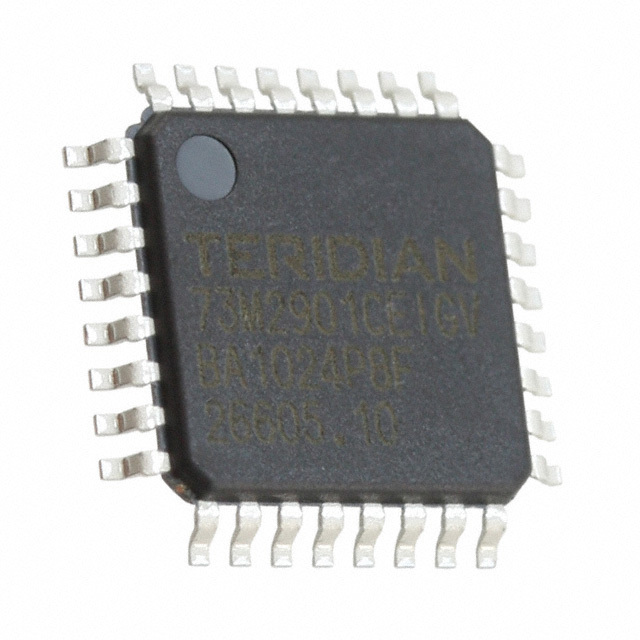

The 73M2901CE-IGV/F from Maxim Integrated is a highly integrated, single-chip modem that offers a compact and cost-effective solution for embedded data communication applications. This V.22bis single-chip modem is designed to operate at data rates up to 2400bps, making it suitable for a variety of low-speed data transmission needs.

Key Features

• Integrated Analog Front End: The chip includes a complete analog front end, reducing the need for external components and simplifying the design process for engineers.
• Low Power Consumption: Designed with power efficiency in mind, the 73M2901CE-IGV/F is ideal for battery-operated devices and other applications where power conservation is critical.
• Flexible Interface Options: It supports a variety of interfaces, including UART and parallel interfaces, allowing for easy integration into different system architectures.
• DTMF Generation and Detection: The chip is capable of generating and detecting Dual-Tone Multi-Frequency (DTMF) signals, which are used for telecommunication signaling over analog telephone lines.
• Caller ID Support: It also provides support for Caller ID, enabling the identification of incoming calls in consumer and business applications.

Applications

The versatility of the 73M2901CE-IGV/F makes it an excellent choice for a wide range of applications, including:

• Point of Sale (POS) terminals
• Security systems
• Utility metering systems
• Remote data logging and telemetry
• Industrial control systems

Technical Specifications

The 73M2901CE-IGV/F operates over a single supply voltage and features a compact package, making it easy to embed in various devices. It complies with the ITU-T V.22bis standard and is backward compatible with V.22, V.21, Bell 212A, and Bell 103 protocols. The chip's robust design ensures reliable operation even in challenging environmental conditions.

Conclusion

Maxim Integrated's 73M2901CE-IGV/F is a feature-rich, single-chip modem that offers designers a balance of performance, power efficiency, and ease of integration. Its support for multiple communication protocols and features like DTMF and Caller ID makes it a versatile solution for a multitude of embedded communication applications.
