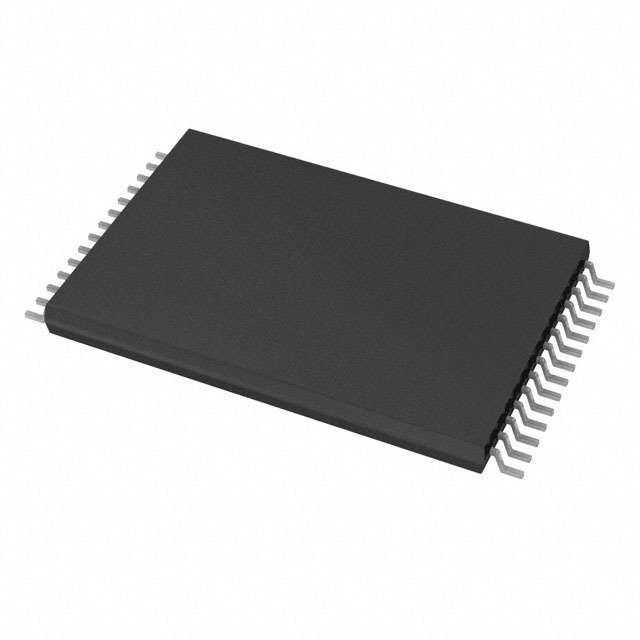

Maxim Integrated DS1501WEN+T&R Real-Time Clock

The DS1501WEN+T&R from Maxim Integrated is a high-performance, full-function real-time clock (RTC) with a precision temperature-compensated crystal oscillator. This RTC is specifically designed to provide a robust timekeeping solution for a wide range of applications that require accurate time tracking, such as data loggers, servers, telecommunications, and other industrial equipment.

One of the key features of the DS1501WEN+T&R is its Y2K-compliant design, which ensures that the RTC will continue to provide reliable time data well into the future. The device includes an integrated NV SRAM, which preserves data in the event of a power failure, thanks to the onboard battery backup. This non-volatile memory can be used to store critical data that must be preserved between power cycles.

The DS1501WEN+T&R is equipped with a serial interface that allows for easy integration into existing systems. It supports both 3-wire and 4-wire SPI communication protocols, making it versatile for various microcontroller interfaces. The device also features an automatic power-fail detect and switch circuitry, which transitions to the battery supply when external power is lost, ensuring uninterrupted timekeeping.

Another notable feature of this RTC is the programmable alarm and interrupt functions. These features allow designers to set specific time events that can trigger actions in the host system, such as waking up a processor or signaling a time-based event. The DS1501WEN+T&R also includes a programmable square wave output, which can be used for timing references or as a system heartbeat.

The device is provided in a surface-mount package, specifically in a tape and reel format (denoted by the T&R suffix), which is suitable for automated assembly processes, making it convenient for mass production. The DS1501WEN+T&R operates over a wide temperature range, ensuring reliable performance across various environmental conditions.

Overall, the Maxim Integrated DS1501WEN+T&R Real-Time Clock is an excellent choice for designers looking for a reliable and feature-rich timekeeping solution that is easy to integrate and provides long-term stability and accuracy.
