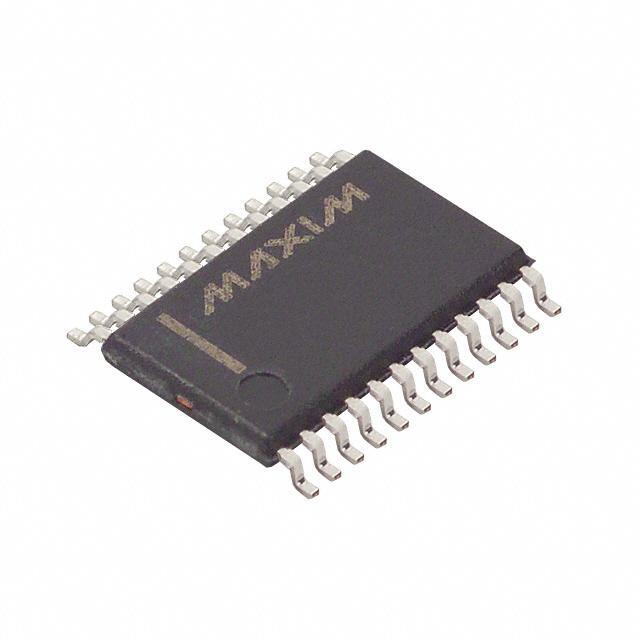

The DS1685E-3+T&R is a high-performance, full-featured real-time clock (RTC) module from Maxim Integrated, a trusted leader in the development of innovative analog and mixed-signal products. This RTC is designed to provide precise time and date information for a wide array of applications ranging from embedded systems to industrial controllers.

Key Features

• Accurate Timekeeping: Integrated temperature-compensated crystal oscillator (TCXO) ensures high accuracy and stability over a wide temperature range.
• Battery Backup: Features a battery input for maintaining timekeeping in the event of a primary power failure.
• Multiple Time Formats: Supports both 24-hour and 12-hour formats with an AM/PM indicator.
• Leap Year Compensation: Valid up to the year 2100, providing automatic adjustments for leap years.
• Programmable Alarm: Includes a programmable alarm function that can be set to a specific time and date.
• Serial Interface: Equipped with a serial interface for easy integration into existing systems.
• Extended Operating Temperature: Operates effectively across an industrial temperature range.

Applications

The DS1685E-3+T&R is a versatile RTC module suitable for a variety of applications, including:

• Embedded Systems
• Industrial Control Systems
• Networking Equipment
• Telecommunications
• Consumer Electronics

Quality and Reliability

Maxim Integrated is committed to delivering products that meet the highest standards of quality and reliability. The DS1685E-3+T&R RTC module is no exception, offering dependable performance and built to withstand the rigors of demanding applications.

Ordering Information

The DS1685E-3+T&R is available in tape and reel packaging, facilitating easy integration into automated production lines. For detailed ordering and pricing information, please contact Maxim Integrated or an authorized distributor.
