Maxim Integrated MAX11166ETC+T Analog-to-Digital Converter

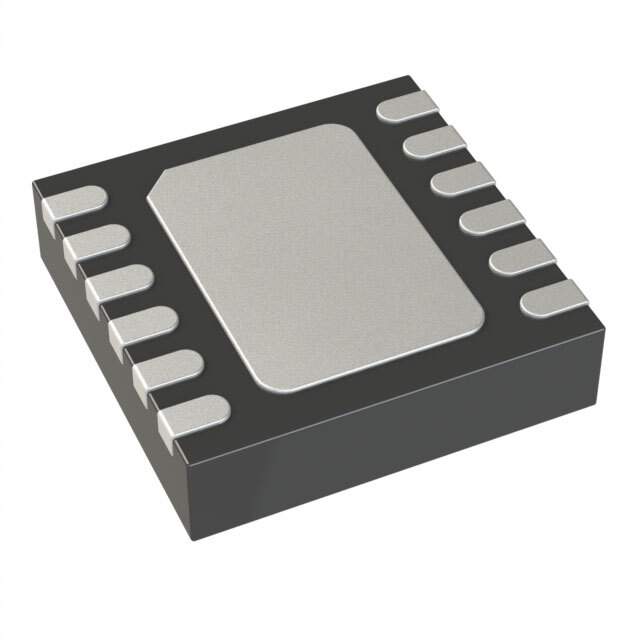

The MAX11166ETC+T is a high-precision, 16-bit Analog-to-Digital Converter (ADC) designed by Maxim Integrated, a renowned leader in the development of integrated circuits. This ADC is part of Maxim's advanced data converter portfolio, offering superior performance in a tiny, leadless 12-pin TDFN package, measuring just 3mm x 3mm. It is an ideal solution for portable and space-constrained applications that require high-resolution data acquisition, such as medical instruments, industrial control systems, and battery-powered devices.

One of the standout features of the MAX11166ETC+T is its pseudo-differential unipolar input, which provides excellent noise rejection and supports a wide input common-mode range. This makes it highly versatile for various signal sources. The device operates from a single 2.7V to 3.6V power supply, ensuring low power consumption, which is critical for extending battery life in portable applications.

The MAX11166ETC+T boasts an impressive sampling rate of up to 500ksps (kilo-samples per second), allowing for rapid data acquisition without compromising on accuracy. This high-speed performance is complemented by an internal reference (2.048V) that ensures stable and precise measurements over the entire operating temperature range (-40°C to +85°C).

Communication with microcontrollers or digital systems is facilitated through a SPI-compatible serial interface, which supports standard SPI, QSPI™, MICROWIRE®, and DSP interface standards. This flexibility makes it easy to integrate the MAX11166ETC+T into a variety of digital systems without the need for complex interfacing circuitry.

For applications requiring multiple ADCs, the MAX11166ETC+T includes a daisy-chain feature that allows several devices to be connected in series, minimizing the number of digital lines required for multi-channel data acquisition systems. Additionally, the device incorporates an external conversion start input, enabling precise timing control and synchronization with external events.

In summary, the Maxim Integrated MAX11166ETC+T is a compact, high-performance 16-bit ADC that offers excellent accuracy, low power consumption, and ease of integration, making it a top choice for engineers and designers seeking reliable data conversion in their applications.
