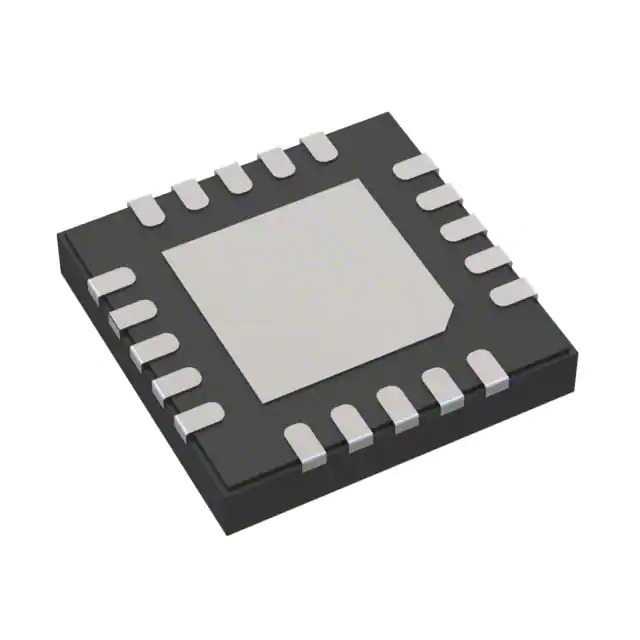

MAX20090BATP/VY+T Automotive LED Controller from Maxim Integrated

The MAX20090BATP/VY+T is a highly efficient and flexible solution designed by Maxim Integrated for automotive lighting systems. This advanced LED controller is tailored to meet the rigorous demands of automotive exterior and interior lighting applications. With its robust design, it ensures reliable operation in the challenging environments typical to automotive applications.

Key Features

• High Efficiency: The device offers high-efficiency LED driving, which is critical for minimizing heat generation and power consumption in automotive lighting systems.
• Integrated MOSFET: The MAX20090BATP/VY+T comes with an integrated high-side n-channel MOSFET, which simplifies the design and reduces external component count.
• Wide Input Voltage Range: It operates over a wide input voltage range, accommodating the various electrical conditions present in automotive environments.
• PWM Dimming Capability: The controller provides precise PWM dimming control, allowing for versatile and dynamic lighting effects.
• Thermal Protection: Thermal protection features are built-in to prevent overheating, ensuring the longevity of the LED controller and the overall lighting system.
• EMC Performance: Designed to meet the stringent electromagnetic compatibility (EMC) requirements of automotive applications.

Applications

The MAX20090BATP/VY+T is ideal for a range of automotive lighting applications, including:

• Headlights
• Tail lights
• Daytime running lights (DRL)
• Turn signals
• Interior lighting

Reliability and Quality

Maxim Integrated's commitment to quality ensures that the MAX20090BATP/VY+T meets the highest standards of reliability. It is designed to withstand the harsh conditions of automotive operation, including vibration, temperature extremes, and transient voltage conditions. This LED controller is an excellent choice for manufacturers seeking to enhance the performance and reliability of their automotive lighting systems.
