Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Analog Devices Inc./Maxim Integrated
Package Box
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MAX20710
Base Product Number MAX20710
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Other Names 175-MAX20710EVKIT#
Standard Package 1
Win Source Part Number 960020-MAX20710EVKIT#
Ultra Librarian 3D Model Ultra Librarian MAX20710EVKIT# CAD Model

Description

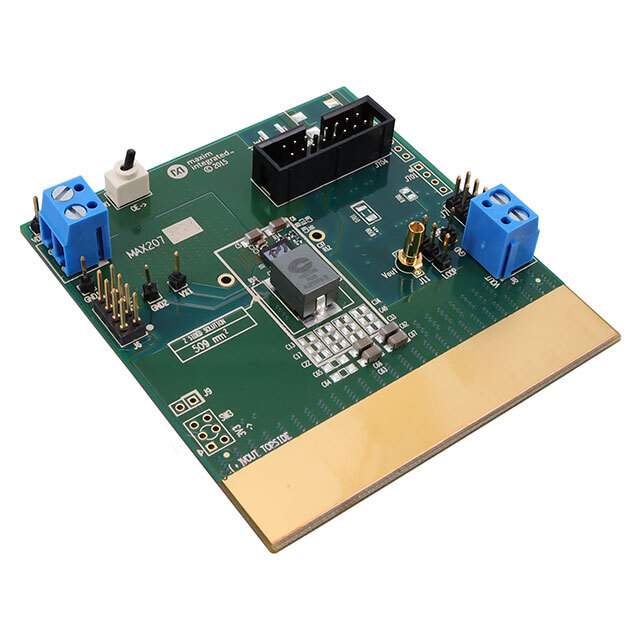

The MAX20710EVKIT# is a fully featured evaluation kit designed for the MAX20710, a high-efficiency, high-voltage, synchronous step-down DC-DC converter from Maxim Integrated. This evaluation kit offers engineers an excellent platform for testing and measuring the performance of the MAX20710 in various applications and under different conditions.

The MAX20710 operates over a wide input voltage range of 4.5V to 16V and can deliver up to 10A of continuous output current with excellent efficiency. This makes it an ideal choice for powering CPUs, FPGAs, and other ICs in complex systems that require a reliable and efficient power supply.

The evaluation kit includes a fully assembled and tested circuit board that features the MAX20710 converter, along with all necessary components for immediate use. It is equipped with jumpers and headers for easy configuration and testing of the device's functions such as soft-start, voltage tracking, and power-good signaling. The kit also provides various test points for convenient access to all critical signals and voltages.

Key features of the MAX20710EVKIT# include:

  • Adjustable output voltage from 0.6V up to 5.5V
  • Integrated MOSFETs for reduced external component count
  • Programmable switching frequency from 200kHz to 1MHz
  • Thermal shutdown and over-current protection
  • Compact design for easy integration into existing systems

With its user-friendly design, the MAX20710EVKIT# allows for quick and easy evaluation of the MAX20710 converter's performance. The kit's comprehensive documentation includes a detailed user guide that provides instructions for setup and use, as well as schematic diagrams and bill of materials (BOM) to assist with further development and integration into end products.

Whether you are a professional engineer, a student, or an electronics enthusiast, the MAX20710EVKIT# from Maxim Integrated is a valuable tool for developing efficient power supply solutions for a wide range of electronic devices.
