Products specifications

Categories RF/IF and RFID
Manufacturer Maxim Integrated
Type Mixer, Downconversion
Frequency 400MHz ~ 2.5GHz
For Use With/Related Products MAX2681
Supplied Contents Board
Win Source Part Number 702743-MAX2681EVKIT
Series MAX series
Popularity Medium
Supply and Demand Status Limited
Family Name MAX2681
Introduction Date November 01, 1998
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MAX2681EVKIT CAD Model

Description

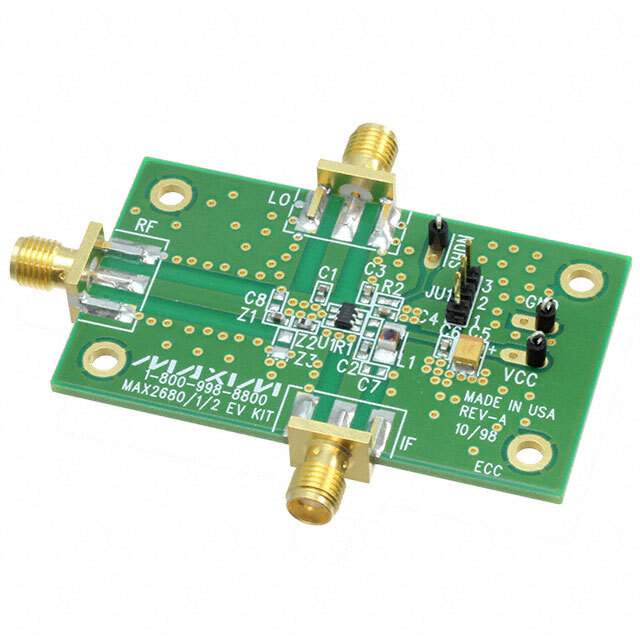

MAX2681EVKIT Evaluation Kit from Maxim Integrated

The MAX2681EVKIT is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX2681, a low-voltage, silicon germanium, low-noise amplifier (LNA) from Maxim Integrated. This evaluation kit is tailored for engineers and developers who require a high-performance, low-power LNA for applications in the GPS, ISM, and WLL frequency bands.

The MAX2681 LNA operates within the 400MHz to 2500MHz frequency range, making it versatile for a wide array of RF applications. The device features an exceptional noise figure of 1.4dB that ensures a clean amplification of weak signals with minimal added noise, which is crucial for maintaining signal integrity in communication systems.

The evaluation kit includes a fully assembled and tested evaluation board, which allows for immediate testing and minimizes the time required to assess the LNA's performance. This board is equipped with 50Ω SMA connectors that provide convenient connections to RF test equipment. The evaluation board also includes all necessary components to properly bias and match the MAX2681 for optimal performance.

Users can adjust the supply voltage from 2.7V to 3.3V, enabling them to test the LNA within its specified operating range. The MAX2681 also features a shutdown mode, which can be controlled via the evaluation board, allowing users to analyze the LNA's performance during power-saving operations.

The MAX2681EVKIT comes with detailed documentation, including a schematic diagram, a bill of materials, and a layout diagram, which provide valuable insights into the design and functionality of the evaluation board. This documentation is essential for users who wish to customize or integrate the LNA into their own designs.

Overall, the MAX2681EVKIT from Maxim Integrated is a powerful tool for professionals looking to evaluate the MAX2681 LNA's performance quickly and efficiently. Its ease of use, combined with comprehensive documentation, makes it an ideal choice for rapid prototyping and development in high-frequency RF applications.
