Product Overview: MAX2691EWS+T10 from Maxim Integrated

The MAX2691EWS+T10 is a state-of-the-art, low-noise amplifier (LNA) designed by Maxim Integrated, a leader in the development of innovative analog and mixed-signal products. This LNA is specifically engineered to meet the demanding requirements of high-performance wireless and communication applications. It is well-suited for use in GPS, Galileo, and GLONASS systems, as well as various other wireless systems operating in the L1/E1/B1 bands.

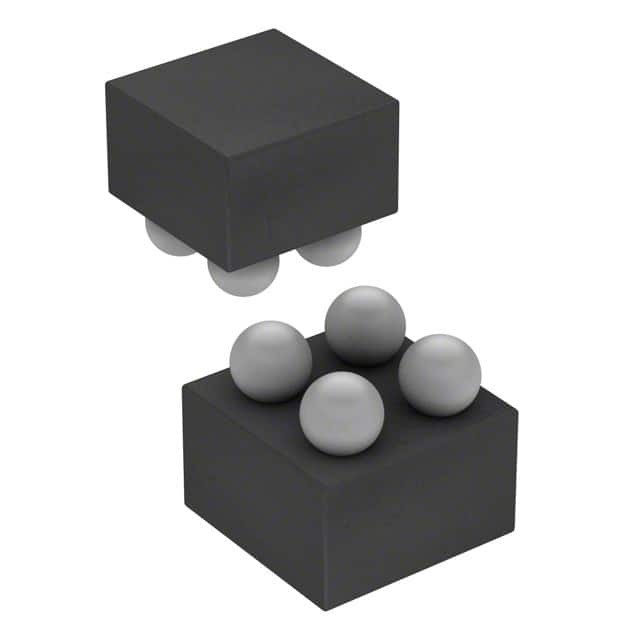

The MAX2691EWS+T10 boasts an impressive low noise figure and high linearity, which are critical for maintaining signal integrity in noisy environments. Its compact size, represented by the small, surface-mountable package, makes it ideal for space-constrained applications. The device operates over a wide supply voltage range, allowing for flexible integration into various circuit designs.

Key features of the MAX2691EWS+T10 include:

• High Gain: Provides a significant amplification of the received signal, ensuring that even weak signals are boosted for further processing.
• Low Noise Figure: Minimizes additional noise introduced into the signal path, preserving the quality of the received signal.
• High Linearity: Maintains the fidelity of the signal across a wide range of input power levels, which is crucial for complex modulation schemes.
• Low Current Consumption: Optimizes power usage, which is particularly beneficial for battery-powered devices.
• Adjustable Bias: Allows for performance optimization based on specific application needs.
• Wide Frequency Range: Capable of operating in various frequency bands, making it a versatile choice for multiple RF applications.

Maxim Integrated's MAX2691EWS+T10 is supplied in a tape and reel format (denoted by the '+T' in the part number), facilitating automated assembly processes for high-volume production. This LNA is an ideal solution for designers looking to enhance the performance of their wireless systems with minimal impact on power budgets and board space.

With its robust design and superior performance characteristics, the MAX2691EWS+T10 LNA is a testament to Maxim Integrated's commitment to delivering high-quality, reliable components that meet the evolving needs of the electronics industry.
