Maxim Integrated's MAX4736ELB+T: High-Performance Analog Switch

The MAX4736ELB+T from Maxim Integrated is a precision, low-voltage, single-pole/double-throw (SPDT) analog switch designed to provide seamless switching capabilities in a variety of electronic applications. This compact and efficient device is an ideal solution for portable and battery-powered equipment due to its low power consumption and high performance.

Constructed with Maxim's advanced silicon-gate process, the MAX4736ELB+T offers a low on-resistance (Ron) of only 0.6 ohms (typical), which minimizes signal distortion and ensures a high signal integrity. The switch operates from a single +1.6V to +3.6V supply, making it perfectly suited for handheld devices where power efficiency is crucial.

One of the standout features of this analog switch is its capability to handle rail-to-rail analog signals. This feature allows for the maximum signal dynamic range, which is particularly important in audio, data acquisition, and signal routing applications. Additionally, the MAX4736ELB+T boasts a high off-isolation of -74dB at 1MHz and a crosstalk of -85dB at 1MHz, ensuring minimal interference between the channels and a clean, noise-free signal transmission.

The MAX4736ELB+T is designed with a break-before-make switching action, which prevents momentary shorting when switching between signals. This characteristic is essential for protecting sensitive circuits and maintaining data integrity during the switching process. The device also includes fast switching speeds (tON = 30ns and tOFF = 20ns typical), which is beneficial for applications that require rapid signal routing.

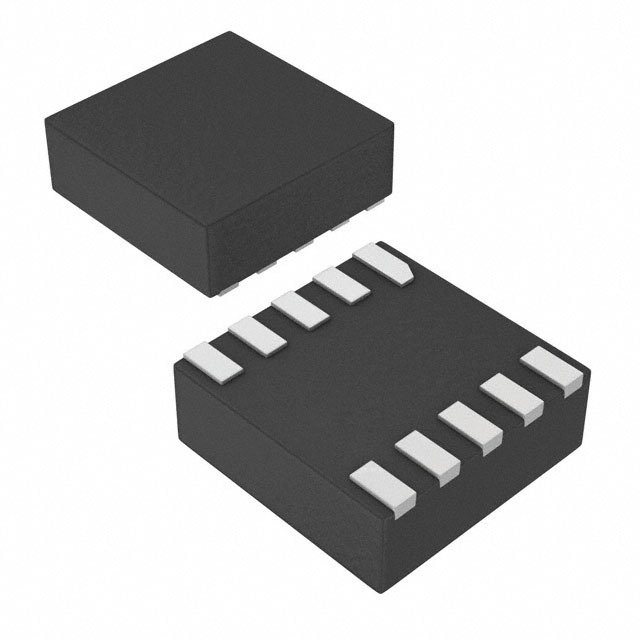

Packaged in a space-saving, 10-pin µDFN (3mm x 3mm) package, the MAX4736ELB+T is optimized for space-constrained applications. Its small footprint allows designers to incorporate this high-quality switch into their systems without compromising on performance or board space.

Whether it's for audio signal routing, data acquisition systems, or other precision analog applications, the MAX4736ELB+T from Maxim Integrated is an excellent choice for designers looking for a reliable and high-performing analog switch that combines efficiency with compactness.
