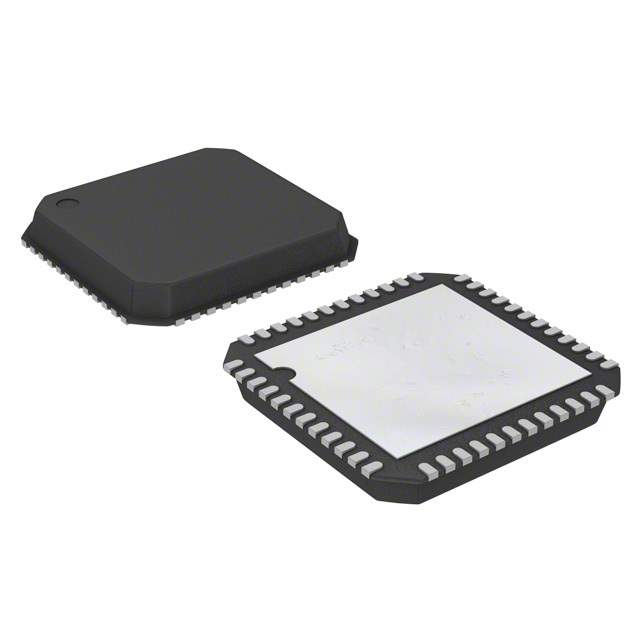

ADP3208JCPZ-RL

Part No ADP3208JCPZ-RL
Manufacturer ON Semiconductor
Catalog PMIC - Voltage Regulators - Special Purpose
Description IC CTRLR BUCK 7BIT IMVP6 48LFCSP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Applications Controller, Intel IMVP-6+
Voltage - Input 4.5 V to 5.5 V
Number of Outputs 1
Output Voltage 0.3 V to 1.5 V
Temperature Range - Operating 0°C to 100°C
Mounting SMD (SMT)
Case / Package 48-LFCSP-VQ (7x7)
Win Source Part Number 009150-ADP3208JCPZ-RL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADP3208JCPZ-RL CAD Model

Description

The ADP3208JCPZ-RL from ON Semiconductor is a highly integrated, multi-phase synchronous Buck switching regulator controller, optimized for regulating the CPU core power supply in notebook computers. It is designed to work with the latest generation of CPUs, ensuring that they receive clean, stable power under varying load conditions.

Key Features

  • Multi-Phase Power Control: The ADP3208JCPZ-RL features a multi-phase architecture that helps to reduce the total output voltage ripple in conjunction with reduced-size, lower-cost output capacitors.
  • High Efficiency: The device's high-efficiency design supports the energy-saving features of modern CPUs by providing an optimal power delivery during both heavy and light load conditions.
  • Dynamic VID Technology: It supports dynamic voltage identification (VID) that allows for real-time CPU voltage adjustment, matching the power requirements of the processor during different states of operation.
  • Overvoltage Protection: Built-in overvoltage protection ensures that the CPU is safeguarded against power supply anomalies, contributing to the overall reliability and longevity of the system.
  • Thermal Monitoring: The controller includes thermal monitoring to prevent overheating, which is critical in maintaining the performance and stability of the CPU.
  • Power Saving Modes: The ADP3208JCPZ-RL supports various power-saving modes, making it an environmentally friendly choice for power management solutions.

Applications

The ADP3208JCPZ-RL is ideal for use in notebook computer power supply systems, but its versatility also makes it suitable for other CPU power supply applications that require a multi-phase architecture and high efficiency. Its robust design and advanced features ensure that it can meet the stringent requirements of modern portable electronics.

Product Packaging

This ON Semiconductor component comes in a compact 40-lead LFCSP (Lead Frame Chip Scale Package), with a "Reel" packaging variant designated by the "RL" suffix, making it suitable for high-volume production environments.

Overall, the ADP3208JCPZ-RL is a testament to ON Semiconductor's commitment to providing advanced power management solutions that enhance the performance and efficiency of electronic devices.
