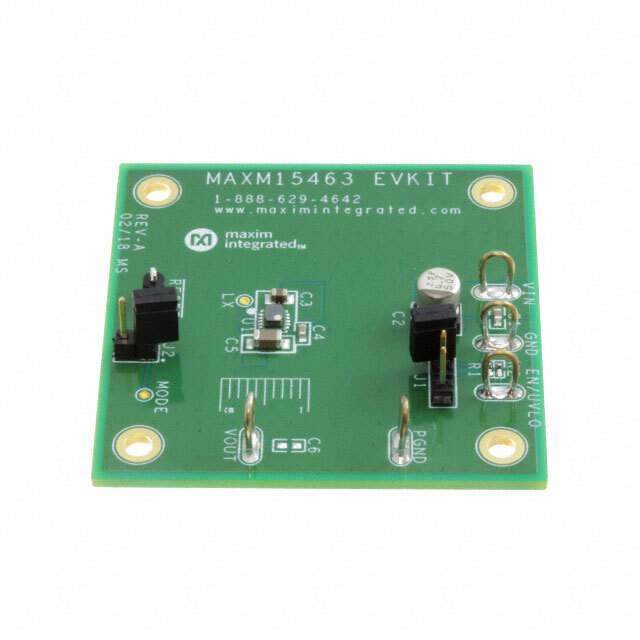

Maxim Integrated MAXM15463EVKIT# Evaluation Kit

The MAXM15463EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed for engineers and developers to assess the performance and features of the MAXM15463 high-efficiency, low-noise, step-down DC-DC power module. The MAXM15463 module is equipped with a built-in switching regulator that allows for a wide input voltage range, making it a versatile solution for a variety of applications, including industrial, automotive, and telecommunications systems.

This evaluation kit provides a convenient platform for testing the MAXM15463 module, with all the necessary components to create a complete power supply solution. The board is pre-configured to deliver a default output voltage, which can be easily adjusted by users to meet their specific requirements. The kit includes jumpers and headers for easy measurement of the power module's performance parameters such as efficiency, load transient response, and output noise.

Key features of the MAXM15463EVKIT# include:

• Wide input voltage range from 4.5V to 42V, catering to a broad spectrum of power sources.
• Adjustable output voltage from 0.9V up to 0.9V less than the input voltage, providing flexibility for different end applications.
• High efficiency and low quiescent current, ensuring energy-saving operation and longer battery life in portable applications.
• Compact, integrated design with minimal external components required, facilitating a quick and easy evaluation process.
• Thermal protection and over-current protection features, ensuring safe operation under various conditions.

The MAXM15463EVKIT# also comes with an easy-to-use graphical user interface (GUI) that can be downloaded from Maxim Integrated's website. This GUI allows for further customization and real-time monitoring of the module's performance, providing users with a detailed insight into the behavior of the power supply under different conditions.

Overall, the MAXM15463EVKIT# is an essential tool for designers looking to leverage the benefits of the MAXM15463 power module in their next project. With its user-friendly features and comprehensive design, this evaluation kit serves as an excellent starting point for developing efficient and reliable power solutions.
