Products specifications

Category Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr Analog Devices Inc./Maxim Integrated
Package Box
Type Interface
Function Sensor Signal Conditioner
Embedded Yes
Utilized IC / Part MAXM86161
Supplied Contents Board(s) , Cable(s)
Secondary Attributes Graphical User Interface (GUI) , I2C Interface
Base Product Number MAXM86161
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1348850-MAXM86161EVSYS#
Ultra Librarian 3D Model Ultra Librarian MAXM86161EVSYS# CAD Model

Description

Maxim Integrated MAXM86161EVSYS# Evaluation Kit

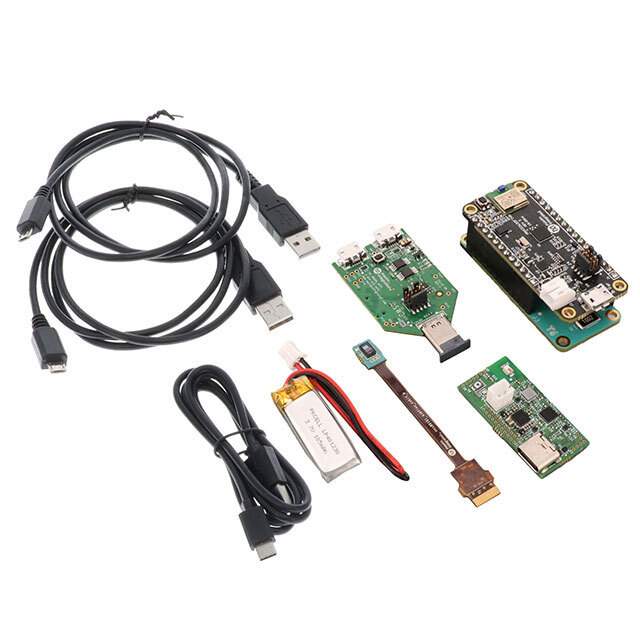

The MAXM86161EVSYS# from Maxim Integrated is a comprehensive evaluation system designed for the MAXM86161 optical biosensor module. This small, integrated module is engineered for the precise measurement of heart rate and SpO2 (blood oxygen saturation levels), making it an ideal solution for wearable health and fitness devices. The evaluation system provides developers with the tools needed to test the performance, optimize power consumption, and fine-tune the algorithms of the MAXM86161 sensor.

At the heart of the MAXM86161EVSYS# is the MAXM86161, a high-sensitivity optical sensor with an integrated photodetector, LEDs, and advanced analog front-end (AFE) circuitry. The sensor supports synchronized heart rate and SpO2 measurements through its proprietary algorithms. Its compact size and low power consumption make it perfect for space-constrained, battery-powered applications.

The evaluation kit includes a USB-powered evaluation board that interfaces with the sensor module and provides a quick way to communicate with a PC for data analysis. The board features an intuitive graphical user interface (GUI) that allows users to collect and display data in real time, adjust LED current settings, modify sampling rates, and experiment with various filters and signal processing options.

For developers looking to integrate the MAXM86161 into their designs, the MAXM86161EVSYS# evaluation system includes comprehensive documentation, including datasheets, application notes, and reference designs. These resources help to accelerate the development process and reduce time-to-market for new products.

Overall, the MAXM86161EVSYS# from Maxim Integrated is an essential tool for engineers and product designers who aim to incorporate reliable biometric sensing capabilities into their wearable devices. With its ease of use, advanced features, and robust support materials, the evaluation system empowers users to harness the full potential of the MAXM86161 sensor and create innovative health monitoring solutions.
