Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOT-23
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 26.7V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 350W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 80pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23
Supplier Device Package SOT-23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362135-SM24C
Ultra Librarian 3D Model Ultra Librarian SM24C CAD Model

Description

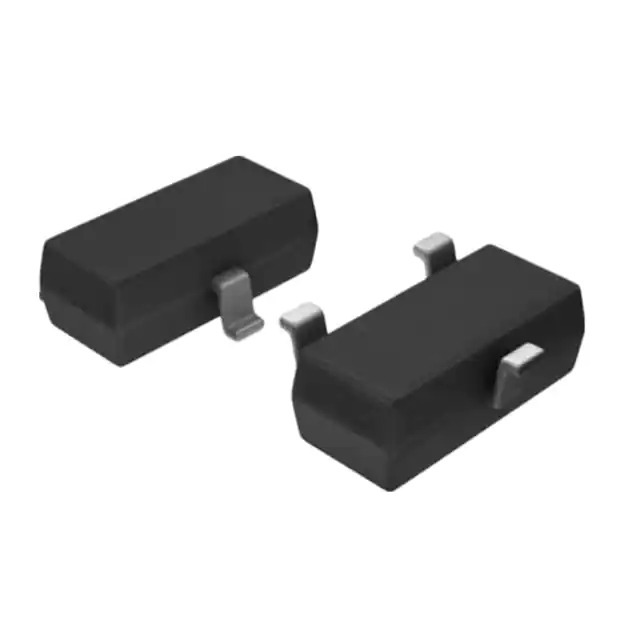

The SM24C is a zener diode transient voltage suppressor (TVS) diode manufactured by MDD.

  • Application: General Purpose
  • Operating Temperature: -55°C~150°C
  • Configuration: Bidirectional
  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 26.7V
  • Peak Pulse Current: 1A (8/20µs)
  • Peak Power Dissipation: 350W
  • Package / Case: SOT-23
  • Mounting Type: Surface Mount
  • REACH: Unaffected
  • ECCN: EAR99
