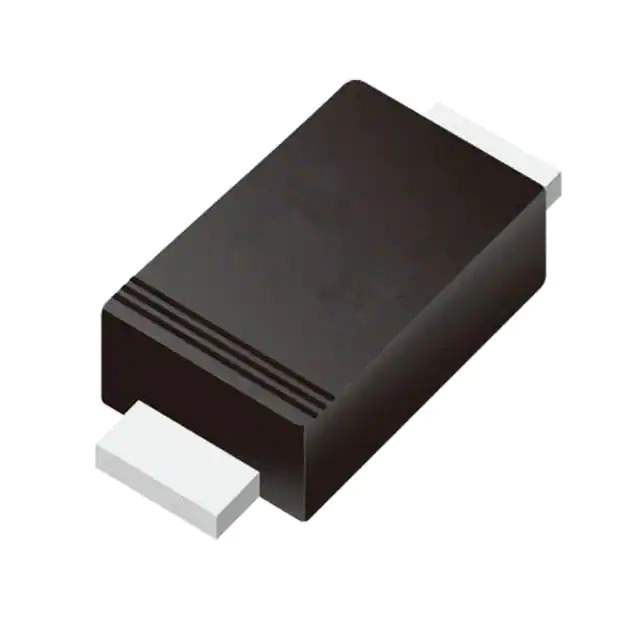

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 500pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 676358-SS34F
Ultra Librarian 3D Model Ultra Librarian SS34F CAD Model

Description

The 676358-SS34F is a fast recovery Schottky diode with a maximum reverse voltage of 40 V and an average rectified current of 3A.

  • Maximum Reverse Voltage: 40 V
  • Average Rectified Current: 3A
  • Forward Voltage: 550 mV @ 3 A
  • Reverse Leakage Current: 500 µA @ 40 V
  • Package: Surface Mount DO-221AC SMA Flat Leads
  • Packaging: Tape and Reel
  • Standard Package Size: 6,000 pcs
  • Recovery Speed: less than 500ns
  • Capacitance: 500pF @ 4V and 1MHz
  • Temperature Range: -55°C to 125°C
  • Mounting: Surface Mount
