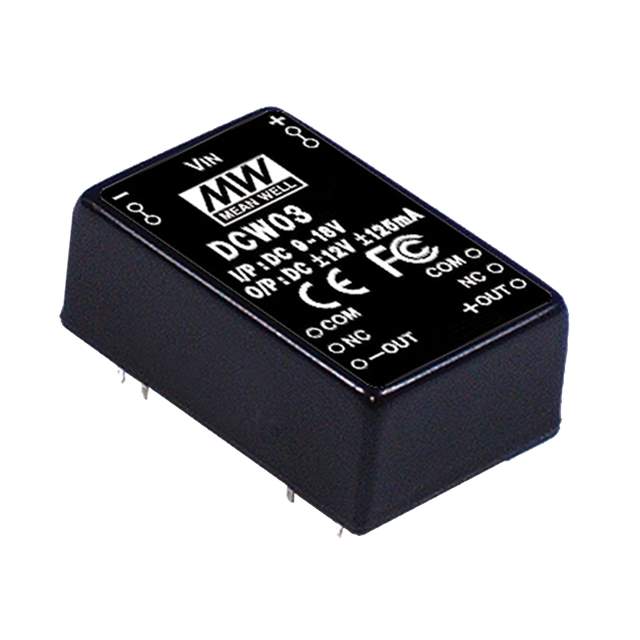

Same model may have multiple batches, images only for reference.

DCW03A-12

Name: DCW03A-12
Brand: Mean Well Enterprises Co., Ltd.
SKU: 868274
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DCW03A-12
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W
Datasheet	DCW03A-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Features	Isolated Module DC DC Converter 2 Output 12V -12V - - 125mA, 125mA 9V - 18V Input
Manufacturer	Mean Well Enterprises Co., Ltd.
Series	DCW03 (3W)
Package	Tube
Part Status	Obsolete
Operating Temperature Range	-40°C ~ 71°C (With Derating)
Mounting	Through Hole
Package	24-DIP Module, 8 Leads
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1866-1240, DCW03A-12-ND
Quantity per package	1
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	868274-DCW03A-12
Ultra Librarian 3D Model	Ultra Librarian DCW03A-12 CAD Model

Alternative Products

Description

The Mean Well Enterprises Co., Ltd. DCW03A-12 is a 3W isolated module DC DC converter.

Output Voltages: 12V and -12V
Maximum Current: 125mA and 125mA respectively
Input Voltage Range: 9V to 18V
Operating Temperature Range: -40°C to 71°C (with derating)
Package: 24-DIP module with 8 leads
Mounting: Through-hole
Category: Power supplies - board mount
Status: in the open market
REACH: Unaffected
ECCN: EAR99
HTSUS code: 8504.40.9580
Other part numbers: 1866-1240 and DCW03A-12-ND.
