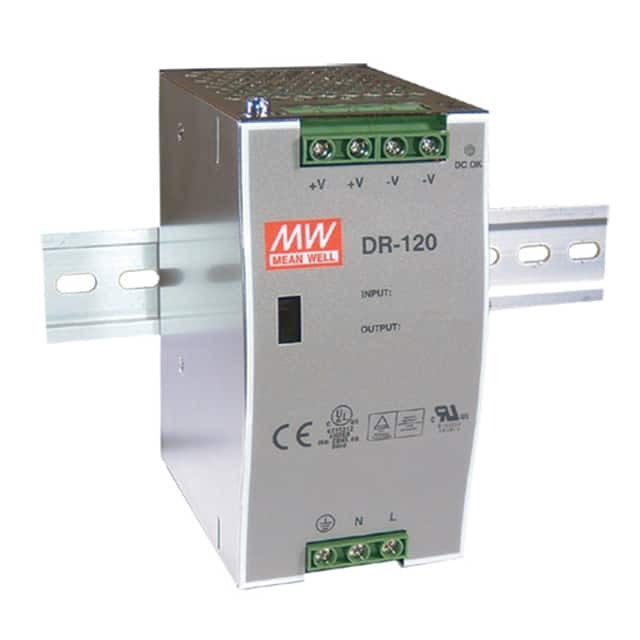

Same model may have multiple batches, images only for reference.
DR-120-24
Same model may have multiple batches, images only for reference.

DR-120-24

Part No DR-120-24
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Industrial, DIN Rail Power Supplies
Description AC/DC DIN RAIL SUPPLY 24V 120W
Datasheet
DR-120-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - Industrial, DIN Rail Power Supplies
Mfr Mean Well Enterprises Co., Ltd.
Series DR-120 (120W)
Package Box
Product Status Obsolete
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 88 ~ 132 VAC, 176 ~ 264 VAC
DC Voltage - Input (Min) 248V
DC Voltage - Input (Max) 370V
Voltage - Output 1 24V
Current - Output (Max) 5A
Power (Watts) 120W
Voltage - Isolation 3 kV
Applications Industrial, ITE (Commercial)
Efficiency 84%
Temperature Range - Operating -10°C ~ 60°C (With Derating)
Features Adjustable Output, Universal Input
Size / Dimension 3.94" L x 2.58" W x 4.93" H (100.0mm x 65.5mm x 125.2mm)
Approval Agency CB, CE, cULus, cURus, TUV
Minimum Load Required No
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 846870-DR-120-24
Ultra Librarian 3D Model Ultra Librarian DR-120-24 CAD Model

Description

The Mean Well DR-120 Industrial DIN Rail Power Supply is a high-quality and reliable power supply for industrial applications.

  • Category: Power Supplies - External/Internal (Off-Board) - Industrial, DIN Rail Power Supplies
  • Series: DR-120
  • Power Output: 120W
  • Features: Adjustable Output, Universal Input
  • Package: Compact Box
  • Dimensions: 3.94" L x 2.58" W x 4.93" H (100.0mm x 65.5mm x 125.2mm)
  • Output: Single Output
  • Voltage: 24V
  • Maximum Output Current: 5A
  • Efficiency: 84%
  • Voltage Isolation: 3 kV
  • Operating Temperature: -10°C to 60°C (with derating)
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.40.9520
  • Product Status: Obsolete
  • Approvals: CB, CE, cULus, cURus, TUV
