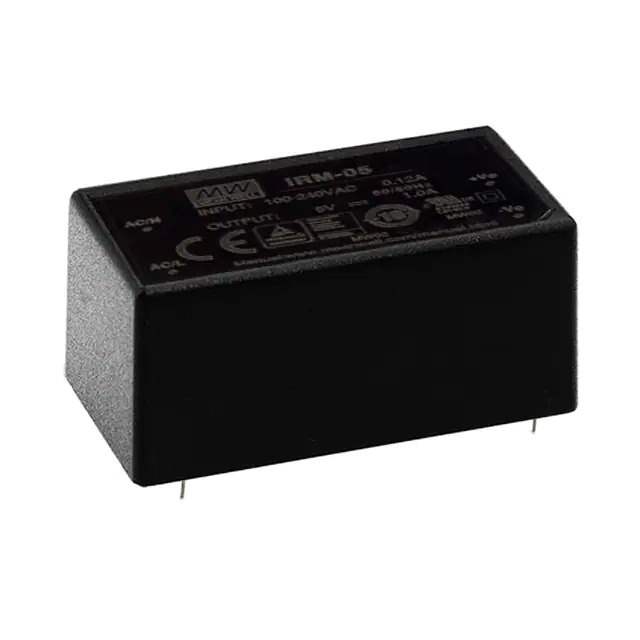

IRM-05-12 Real Image
Same model may have multiple batches, images only for reference.

IRM-05-12

Part No IRM-05-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 5W / Enclosed AC DC Converters 1 Output 12V 420mA 85 ~ 305 VAC, 120 ~ 430 VDC Input
Datasheet
IRM-05-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series IRM-05 (5W)
Package Box
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC, 120 ~ 430 VDC
Voltage - Output 1 12V
Current - Output (Max) 420mA
Power (Watts) 5 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Efficiency 75%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm)
Approval Agency CB, CE, cURus, EAC, TUV
Line Regulation ±0.3%
Load Regulation ±0.5%
Base Product Number IRM-05
Standard Package 270 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 847687-IRM-05-12
Ultra Librarian 3D Model Ultra Librarian IRM-05-12 CAD Model

Description

The 847687-IRM-05-12 is a 5W AC-DC converter module designed for board-mount applications.

  • Series: IRM-05
  • Type: Enclosed
  • Size: 1.80" L x 1.00" W x 0.85" H (45.7mm x 25.4mm x 21.5mm)
  • Power Output: 5W
  • Output Current: 420mA
  • Input Voltage: 85V to 305V AC or 120V to 430V DC
  • Output Voltage: 12V
  • Efficiency: 75%
  • Regulation: Line and Load Regulation
  • Manufacturer: Mean Well Enterprises Co., Ltd.
  • Product Status: Active
  • Application: Commercial
