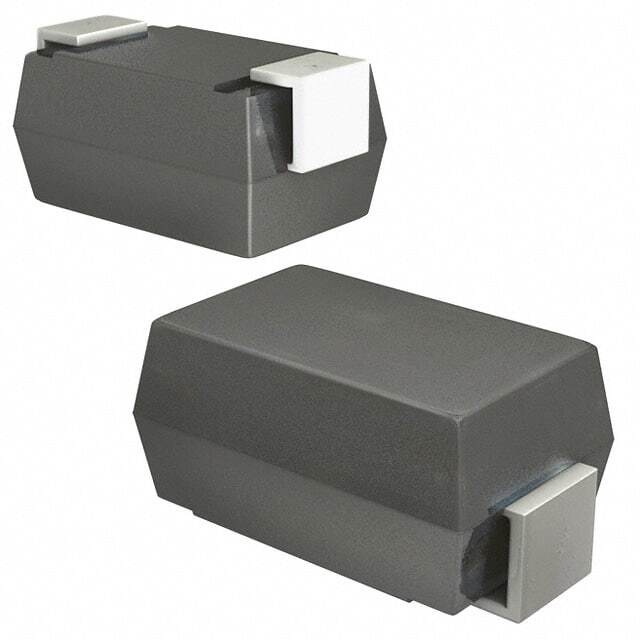

Same model may have multiple batches, images only for reference.

3SMAJ5921B-TP

Name: 3SMAJ5921B-TP
Brand: Micro Commercial Co
SKU: 855892
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3SMAJ5921B-TP
Manufacturer	Micro Commercial Co
Catalog	Diodes - Zener - Single
Description	DIODE ZENER 6.8V 3W DO214AC / Zener Diode 6.8 V 3 W ±5% Surface Mount DO-214AC (SMA)
Datasheet	3SMAJ5921B-TP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr	Micro Commercial Co
Package	Tape & Reel
Product Status	Active
Voltage - Zener (Nom) (Vz)	6.8 V
Tolerance	±5%
Power - Max	3 W
Impedance (Max) (Zzt)	2.5 Ohms
Current - Reverse Leakage @ Vr	5 µA @ 5.2 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA
Temperature Range - Operating	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Base Product Number	3SMAJ5921
Standard Package	7,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0050
Win Source Part Number	855892-3SMAJ5921B-TP
Ultra Librarian 3D Model	Ultra Librarian 3SMAJ5921B-TP CAD Model

Alternative Products

Description

The 3SMAJ5921B-TP is a zener diode from Micro Commercial Co.

Application: Zener Diode
Maximum Power Rating: 3 W
Voltage Drop: 1.5 V @ 200 mA
Zener Voltage: 6.8 V
Reverse Leakage Current: 5 μA @ 5.2 V
Mounting Type: Surface Mountable
Package: DO-214AC, SMA
Operating Temperature: -55°C to 150°C
Product Status: Active
Manufacturer: Micro Commercial Co
