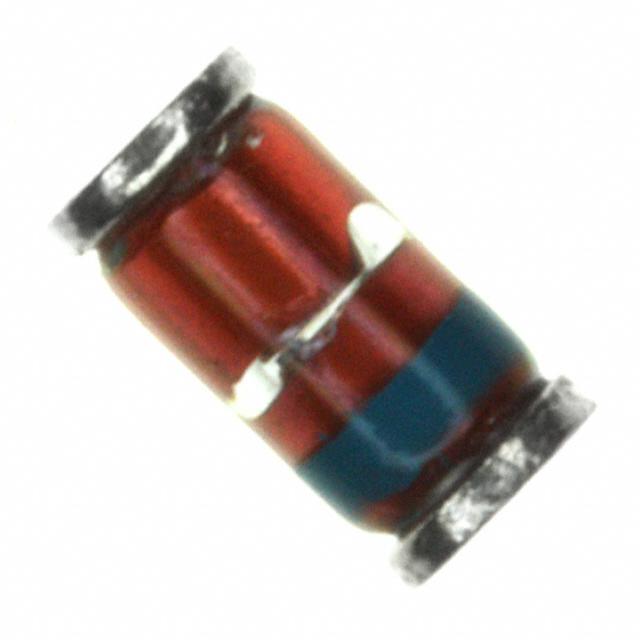

Same model may have multiple batches, images only for reference.
DL4749A-TP Micro Commercial Co
Same model may have multiple batches, images only for reference.

DL4749A-TP

Part No DL4749A-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 24V 1W MELF
Datasheet
DL4749A-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 24V
Tolerance ±5%
Maximum Power Dissipation 1W
Impedance (Max) (Zzt) 25 Ohm
Current - Reverse Leakage @ Vr 5μA @ 18.2V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package MELF
Win Source Part Number 1033450-DL4749A-TP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DL4749A-TP CAD Model

Description

The Micro Commercial Co DL4749A-TP is a zener diode that has a voltage rating of 24V and a tolerance of ±5%.

  • Voltage Rating: 24V
  • Tolerance: ±5%
  • Maximum Power Dissipation: 1W
  • Mounting: SMD (SMT)
  • Current Reverse Leakage: 5μA @ 18.2V
  • Voltage Forward (Vf) (Max) @ If: 1.2V @ 200mA
  • Impedance (Max) (Zzt): 25 Ohm
  • Package: MELF
  • Operating Temperature: -65°C to 175°C
  • Status: Active
  • Popularity: Medium
  • Supply and Demand: Sufficient
