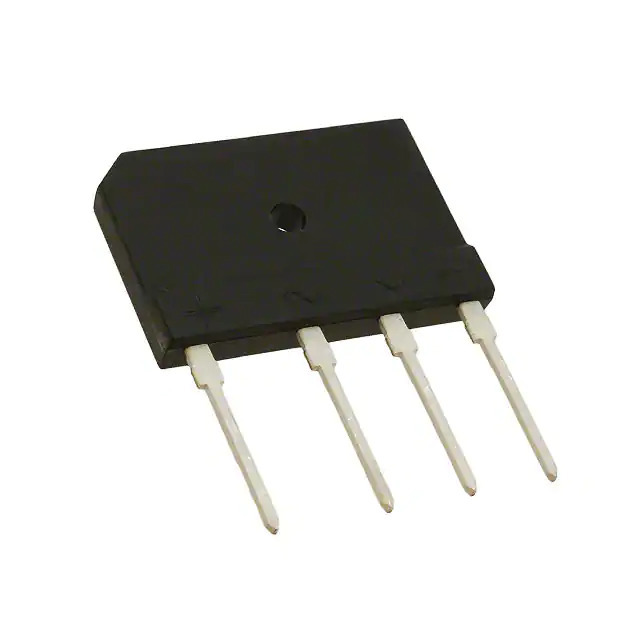

Same model may have multiple batches, images only for reference.
GBJ3506-BP Micro Commercial Co
Same model may have multiple batches, images only for reference.

GBJ3506-BP

Part No GBJ3506-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 35A GBJ
Datasheet
GBJ3506-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Micro Commercial Co
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 35 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 17.5 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBJ
Supplier Device Package GBJ
Base Product Number GBJ3506
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367905-GBJ3506-BP
Ultra Librarian 3D Model Ultra Librarian GBJ3506-BP CAD Model

Description

The 1367905-GBJ3506-BP is a bridge rectifier diode from Micro Commercial Co.

  • Diode Type: Single Phase
  • Maximum Peak Reverse Voltage: 600V
  • Current Rating: 35A
  • Forward Voltage: 1.05V @ 17.5A
  • Reverse Leakage Current: 10µA @ 600V
  • Packaging: Tube
  • Mounting Type: Through-Hole
  • Operating Temperature: -55°C to 150°C
  • REACH: Unaffected
