Same model may have multiple batches, images only for reference.

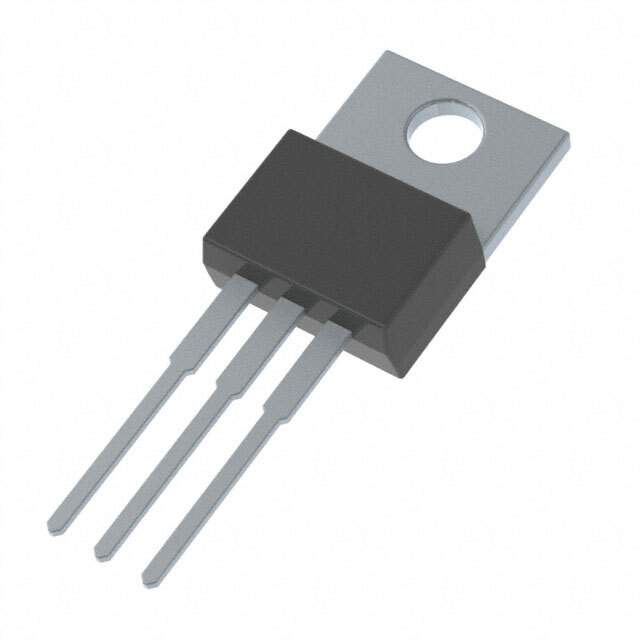

TIP116-BP Real Image
Same model may have multiple batches, images only for reference.

TIP116-BP

Part No TIP116-BP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS PNP DARL 80V 2A TO-220
Datasheet
TIP116-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube/Rail
Status Active
Transistor Polarity PNP - Darlington
Maximum Current Collector 2A
VCEO Maximum Collector-Emitter Breakdown Voltage 80V
Max Vce (sat) 2.5V @ 8mA, 2A
Collector Cut-off Current(Max) 2mA
Typical Gain (hFE) (Min) 1000 @ 1A, 4V
Maximum Power Dissipation 2W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-220
Win Source Part Number 139625-TIP116-BP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian TIP116-BP CAD Model

Description

The Micro Commercial Co TIP116-BP is a PNP Darlington transistor that is ideal for use in a wide range of applications.

  • Maximum Collector-Emitter Breakdown Voltage: 80V
  • Maximum Current Collector: 2A
  • Typical Gain: 1000 @ 1A and 4V
  • Maximum Power Dissipation: 2W
  • Package: TO-220
  • Temperature Range: -55°C to 150°C
