Products specifications

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 29 Weeks

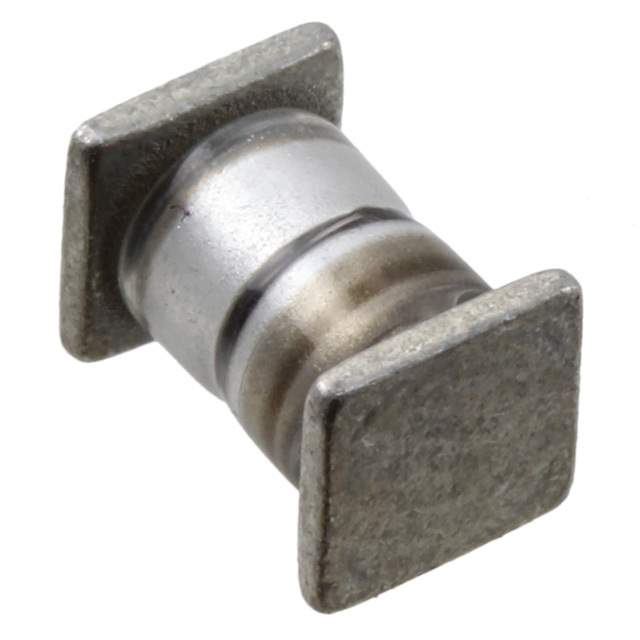

Features Diode Schottky 40 V 3A Surface Mount B, SQ-MELF
Manufacturer Microchip Technology
Package Bulk
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package SQ-MELF, B
Case / Package B, SQ-MELF
Family Name 1N5822
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905729-1N5822US
Ultra Librarian 3D Model Ultra Librarian 1N5822US CAD Model

Description

The 1N5822US is a robust Schottky diode from the renowned manufacturer Microchip Technology. This high-efficiency rectifier is designed to meet the needs of a wide range of applications, offering superior performance in a compact package. With its low forward voltage drop and fast switching capabilities, the 1N5822US is an excellent choice for power supply designs and as a polarity protection diode.

Key Features

  • Low Forward Voltage Drop: The diode provides a low forward voltage drop, which results in lower power losses and higher efficiency in operation.
  • High Surge Current Capability: It is capable of withstanding high surge currents, making it suitable for applications that experience occasional overcurrent conditions.
  • Guard Ring Die Construction: The guard ring construction offers enhanced ruggedness and long-term reliability, which is critical for industrial and high-reliability applications.
  • Fast Switching: With its fast switching capability, the 1N5822US can handle high-frequency operations, making it ideal for switch-mode power supplies.

Applications

The versatility of the 1N5822US Schottky diode allows it to be used in a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • DC-DC converters
  • Free-wheeling diodes in converters and motor control circuits
  • Polarity protection devices
  • Low voltage, high-frequency inverters
  • Charging and portable devices

Specifications

Parameter Value Package / Case DO-204AA, DO-15, Axial Maximum Repetitive Reverse Voltage 40V Maximum Continuous Forward Current 3A Operating Temperature Range -65°C to 175°C

For detailed product information, datasheets, and support, visit the Microchip Technology official website or contact their customer support team. The 1N5822US is not only a testament to Microchip's commitment to quality but also an essential component for any power management solution.
