Products specifications

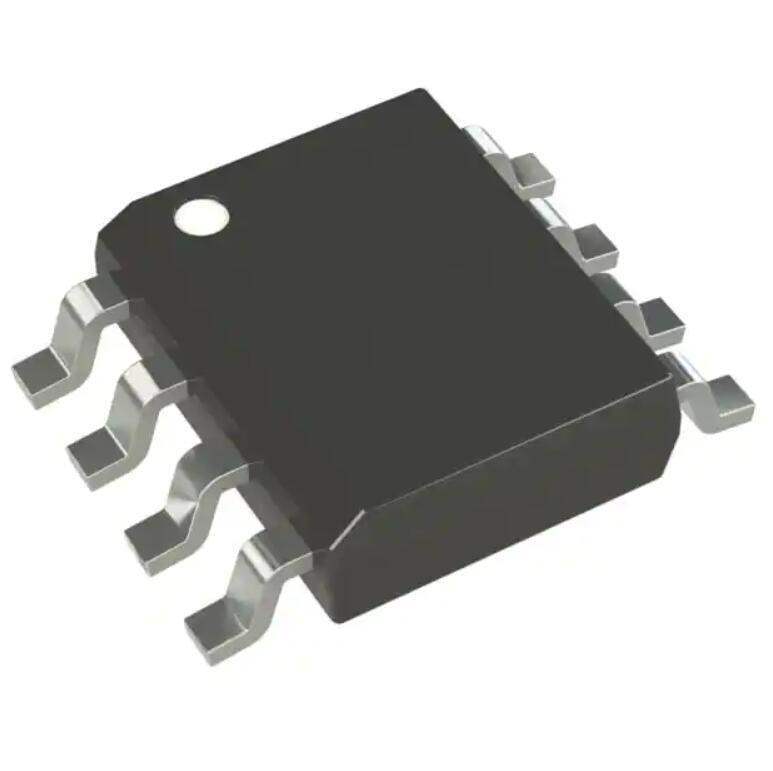

Win Source Part Number WS1194955-47L16T-E/SN
Win Source Part Number Cross
Manufacturer Microchip Technology
Category Integrated Circuits (ICs) Memory Memory
Package Tape & Reel (TR)
Product Status Active
Memory Type Non-Volatile
Memory Format EERAM
Technology EEPROM, SRAM
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 47L16T-E/SN CAD Model

Description

Microchip Technology's 47L16T-E/SN EEPROM

The 47L16T-E/SN is a high-quality EEPROM (Electrically Erasable Programmable Read-Only Memory) device produced by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This EEPROM is designed to provide reliable data storage while enabling the flexibility of data updates without the need for a full chip erase. Its part number reflects a specific package and temperature range, ensuring suitability for a wide range of applications.

Key Features

  • Memory Size: The 47L16T-E/SN comes with a storage capacity that is ideal for applications requiring a moderate amount of data storage or parameter settings that need to be retained across power cycles.
  • Interface: It features a standard serial I²C interface, allowing for easy integration into most microcontroller-based systems with minimal pin overhead.
  • Write Protection: To prevent accidental data corruption, this EEPROM includes hardware write protection features. A dedicated write protect pin ensures that stored data remains safe during critical operations or when exposed to potentially harmful environmental conditions.
  • Low Power Consumption: The device is optimized for low power consumption, making it an excellent choice for battery-operated or power-sensitive applications.
  • Wide Operating Voltage Range: It operates across a wide voltage range, accommodating various logic levels and system requirements.
  • Industrial Temperature Range: The '-E' in the part number indicates that this EEPROM operates reliably across an extended temperature range, making it suitable for industrial environments.

Applications

The 47L16T-E/SN is versatile and can be used in a variety of applications, including:

  • Consumer electronics
  • Industrial control systems
  • Automotive systems
  • Medical devices
  • Smart sensors

Its robust design and reliable data retention capabilities make it an excellent choice for designers looking for a non-volatile memory solution that can withstand the rigors of tough environments while maintaining data integrity.

In conclusion, the Microchip Technology 47L16T-E/SN EEPROM is a compact, highly reliable memory solution that offers the flexibility and durability needed for modern electronic designs. Its ease of integration, coupled with its advanced features, makes it an essential component for any application requiring non-volatile memory storage.
