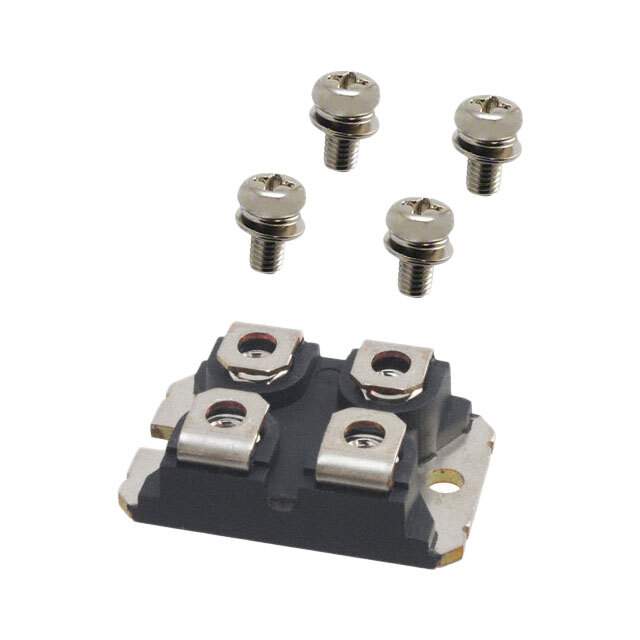

The APT200GN60J is a state-of-the-art Insulated Gate Bipolar Transistor (IGBT) developed by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This high-performance IGBT is designed to meet the demanding needs of a wide range of power electronics applications, including motor drives, uninterruptible power supplies (UPS), inverters, and more.

Key Features

• High Voltage Capability: The APT200GN60J is capable of handling high voltages, with a collector-emitter voltage (Vce) rating of 600V, making it suitable for high-power applications.
• Low On-Resistance: This IGBT boasts a low on-resistance, ensuring high efficiency and lower conduction losses in power conversion systems.
• High Current Rating: With a continuous collector current (Ic) rating of 200A at 25°C, this device can manage significant current levels, contributing to its robust performance in high-power applications.
• Fast Switching Speed: The APT200GN60J offers fast switching speeds, which is critical for reducing switching losses and improving the overall efficiency of power electronic systems.
• Robust Thermal Performance: The IGBT is designed with an optimal thermal management system, featuring a maximum junction temperature (Tj) of 150°C, which helps in maintaining performance even under high temperature operating conditions.

Applications

The versatility of the APT200GN60J makes it an ideal choice for various high-power applications, including:

• Industrial Motor Drives
• Uninterruptible Power Supplies (UPS)
• Solar Power Inverters
• Electric Vehicle (EV) Charging Systems
• Induction Heating Systems

Quality and Reliability

Microchip Technology is committed to providing products that meet the highest standards of quality and reliability. The APT200GN60J IGBT is no exception, with its robust design and thorough testing ensuring dependable performance in the most challenging environments.

Conclusion

With its combination of high voltage and current capabilities, low on-resistance, fast switching speeds, and excellent thermal performance, the APT200GN60J from Microchip Technology stands out as a top-tier component for power electronics engineers looking to enhance the efficiency and reliability of their applications.
