Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Microchip Technology
Packaging Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 31A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 150mOhm @ 21A, 10V
Vgs(th) (Max) @ Id 5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs 215 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 5890 pF @ 25 V
Power Dissipation (Max) 355W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Chassis Mount

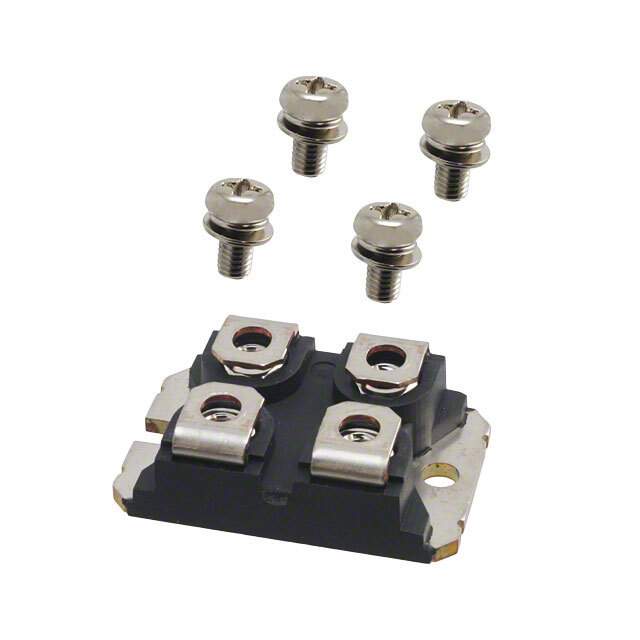

Supplier Device Package ISOTOP®
Case / Package SOT-227-4, miniBLOC
Base Product Number APT30M60
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 1
Win Source Part Number 1325273-APT30M60J
Ultra Librarian 3D Model Ultra Librarian APT30M60J CAD Model

Description

Introducing the APT30M60J, a high-performance Power MOSFET brought to you by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This device is engineered to deliver superior power efficiency and reliability for a wide range of applications, including power supply systems, motor drives, and high-power switching circuits.

Key Features

  • High Voltage Capability: The APT30M60J is designed to handle high voltages, with a drain-to-source voltage (V<sub>DS) of up to 600V, making it suitable for various industrial and commercial power applications.
  • Low On-Resistance: With an on-resistance (R<sub>DS(on)) as low as 0.060 Ohm, this MOSFET ensures minimal power loss and improved efficiency in your electronic designs.
  • Fast Switching Performance: The APT30M60J boasts a fast-switching speed, which is critical for reducing switching losses and improving the performance of power converters and inverters.
  • Robust Thermal Management: The device comes in a package that provides excellent thermal performance, ensuring reliability even under high temperature operating conditions.

Applications

The versatility of the APT30M60J makes it an ideal choice for a multitude of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Uninterruptible Power Supplies (UPS)
  • DC-AC Inverters for Solar Power Systems
  • Electric Vehicle (EV) Charging Stations
  • High-Frequency Welding Equipment
  • Induction Heating Systems

Quality and Support

Microchip Technology is committed to providing customers with products that meet the highest standards of quality and reliability. The APT30M60J is no exception, and it is backed by Microchip's comprehensive technical support and service. Whether you are designing a new system or upgrading an existing one, the APT30M60J Power MOSFET is a choice you can trust for efficiency and endurance.
