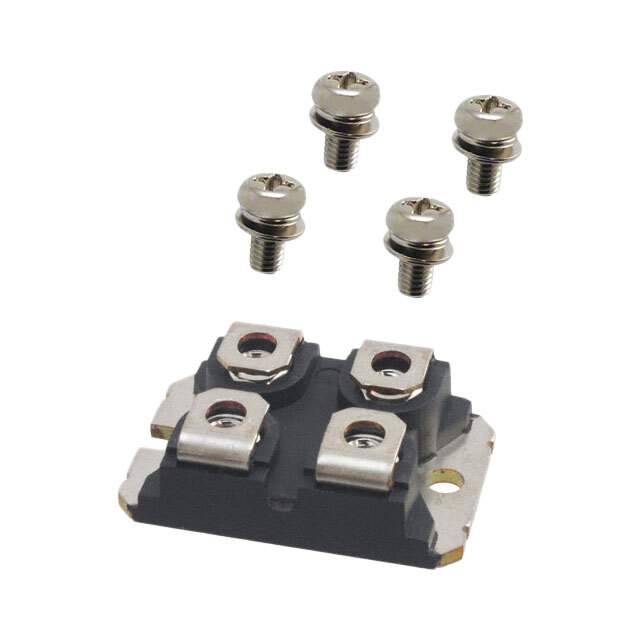

The APT60GA60JD60 from Microchip Technology is a state-of-the-art Insulated Gate Bipolar Transistor (IGBT) designed for high-efficiency and high-speed switching applications. This IGBT module is a perfect choice for a wide range of power electronics applications, including motor drives, uninterruptible power supplies (UPS), and inverters for renewable energy systems.

Key Features

• High Voltage Rating: With a 600V maximum collector-emitter voltage (V_CE), this IGBT is suitable for mid-range voltage applications, providing a buffer for transients and spikes.
• Low On-Resistance: The APT60GA60JD60 boasts a low on-resistance, which translates to reduced conduction losses and improved overall efficiency.
• High Current Capability: This IGBT can handle continuous collector currents up to 60A, making it capable of driving high-power loads with ease.
• Fast Switching Speed: The fast switching capabilities of the APT60GA60JD60 reduce switching losses and enable operation at higher frequencies, which can lead to smaller and more efficient designs.
• Robust Thermal Performance: The device features a rugged design with an optimized thermal interface, ensuring reliable operation even under high-temperature conditions.

Applications

The versatility of the APT60GA60JD60 IGBT allows it to be used in various applications that require high efficiency and reliability. Some of the typical applications include:

• AC and DC motor drives
• Power inverters for solar and wind energy systems
• Switched-mode power supplies (SMPS)
• Industrial heating and welding equipment
• Electric vehicle (EV) components, such as chargers and powertrain modules

Quality and Reliability

Microchip Technology is known for its commitment to quality and reliability. The APT60GA60JD60 IGBT is manufactured using state-of-the-art processes and is subjected to rigorous testing to ensure its performance in demanding environments. Engineers and designers can trust this IGBT to deliver exceptional performance and long operational life in their critical power applications.
