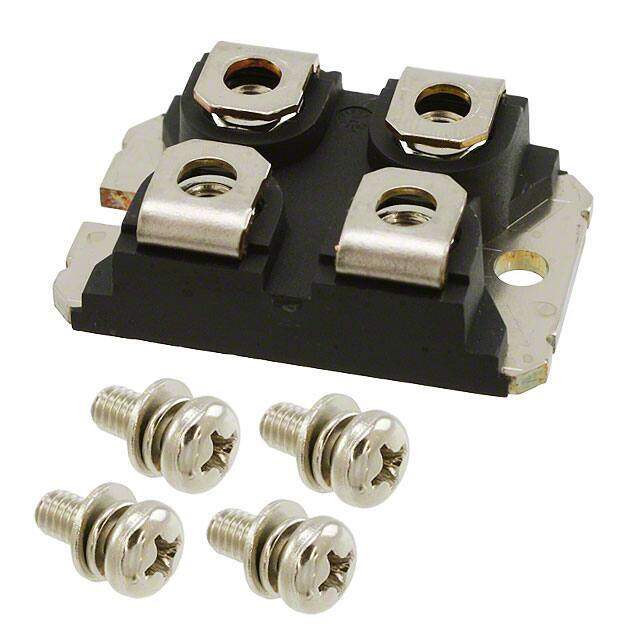

VS-GA250SA60S Real Image
Same model may have multiple batches, images only for reference.

VS-GA250SA60S

Part No VS-GA250SA60S
Manufacturer Vishay
Catalog IGBTs - Modules
Description IGBT MOD 600V 400A 961W SOT227
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Vishay
Package Tube
Product Status Obsolete
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 400 A
Power - Max 961 W
Vce(on) (Max) @ Vge, Ic 1.66V @ 15V, 200A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 16.25 nF @ 30 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case SOT-227-4
Supplier Device Package SOT-227
Base Product Number GA250
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 847067-VS-GA250SA60S
Ultra Librarian 3D Model Ultra Librarian VS-GA250SA60S CAD Model

Description

The VS-GA250SA60S is an IGBT module from Vishay.

  • Power (Max): 961W
  • Configuration: Single
  • Input: Standard
  • Voltage: 600V
  • Collector Current (Max): 400A
  • Vce(on): 1.66V @ 15V Vge, 200A Ic
  • Mounting Type: Chassis Mount
  • Package: SOT-227-4
  • Operating Temperature: -40°C to 150°C
  • Status: Obsolete
