Products specifications

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr Microchip Technology
Series POWER MOS 8™
Package Tube
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 143 A
Current - Collector Pulsed (Icm) 240 A
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 47A
Power - Max 625 W
Switching Energy 840µJ (on), 751µJ (off)
Input Type Standard
Gate Charge 230 nC
Td (on/off) @ 25°C 23ns/158ns
Test Condition 400V, 47A, 4.7Ohm, 15V
Reverse Recovery Time (trr) 22 ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole

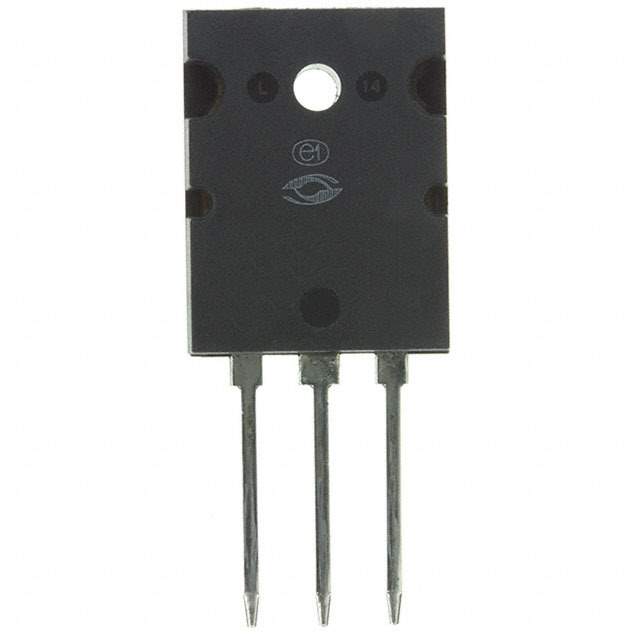

Package / Case TO-264-3, TO-264AA
Supplier Device Package TO-264
Base Product Number APT80GA60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 1
Win Source Part Number 1220581-APT80GA60LD40
Ultra Librarian 3D Model Ultra Librarian APT80GA60LD40 CAD Model

Description

The APT80GA60LD40 is a state-of-the-art power MOSFET brought to you by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This device is designed to meet a wide range of high-performance power switching applications, particularly excelling in high-speed switching environments due to its low on-resistance and fast switching capabilities.

Key Features:

  • High Voltage Capability: The APT80GA60LD40 is engineered to handle up to 600V, making it suitable for high voltage applications that require efficient power conversion and management.
  • Low On-Resistance: With an on-resistance as low as 0.040 ohms, this MOSFET provides excellent conduction performance, resulting in reduced power losses and improved overall efficiency.
  • Fast Switching Speed: Its fast switching capability ensures minimal switching losses, which is crucial for applications such as switching power supplies and motor control where efficiency is paramount.
  • Robust Design: The APT80GA60LD40 is built to withstand harsh conditions and is characterized by its ruggedness and reliability, with features that protect against overcurrent and thermal overload.
  • Energy-Efficient: This power MOSFET is not only powerful but also designed with energy efficiency in mind, helping to reduce the carbon footprint of your applications.

Applications:

The APT80GA60LD40 is versatile and can be used in a variety of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Uninterruptible Power Supplies (UPS)
  • Motor Drives
  • Power Inverters
  • High-Frequency Welding
  • Inductive Heating

With its robust design and high-performance features, the APT80GA60LD40 from Microchip Technology is an excellent choice for designers looking to improve the efficiency, reliability, and performance of their power management systems.
